1-770973-0

Active

TE Connectivity AMP Connectors

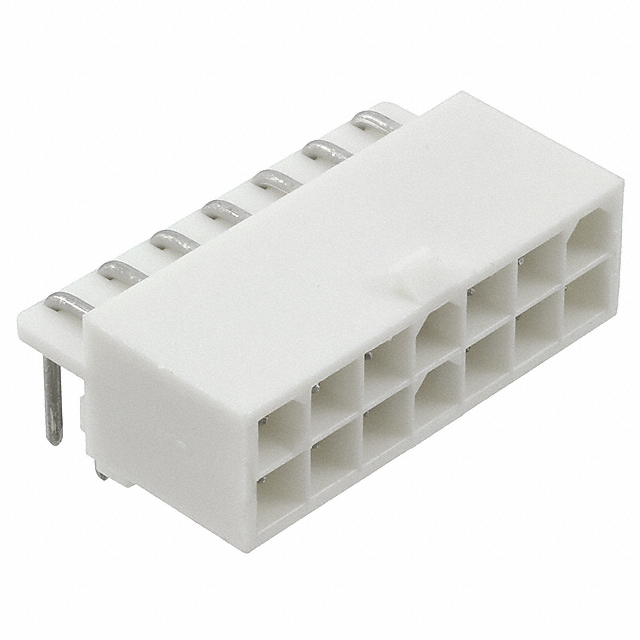

CONN HEADER R/A 14POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 14POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-770973-0	770973 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	150 Áin	150 Áin
Contact Finish Thickness - Mating	3.81 Ám	3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER R/A 14POS 4.14MM

Part	Insulation Height	Insulation Height	Contact Type	Voltage Rating	Applications	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Number of Rows	Contact Shape	Contact Material	Insulation Color	Mounting Type	Number of Positions	Connector Type	Style	Material Flammability Rating
TE Connectivity AMP Connectors 770973-1	9.8 mm	0.386 in	Male Pin	600 VAC	General Purpose	Locking Ramp	150 Áin	3.81 Ám	Varies by Wire Gauge	Tin-Lead	85 °C	-20 C	Tin-Lead	4.14 mm	0.163 in	Shrouded - 4 Wall	0.145 in	3.68 mm	4.14 mm	0.163 in	Nylon, Polyamide (PA)	150 Áin	3.81 Ám	All	Solder	2	Circular	Brass	White	Through Hole, Right Angle	14	Header	Board to Cable/Wire	UL94 V-0
TE Connectivity AMP Connectors 1-770973-0	9.8 mm	0.386 in	Male Pin	600 VAC	General Purpose	Locking Ramp	150 Áin	3.81 Ám	Varies by Wire Gauge		85 °C	-20 C	Tin	4.14 mm	0.163 in	Shrouded - 4 Wall	0.145 in	3.68 mm	4.14 mm	0.163 in	Nylon, Polyamide (PA)	150 Áin	3.81 Ám	All	Solder	2	Circular	Brass	White	Through Hole, Right Angle	14	Header	Board to Cable/Wire	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 14 position 0.163" (4.14mm)
