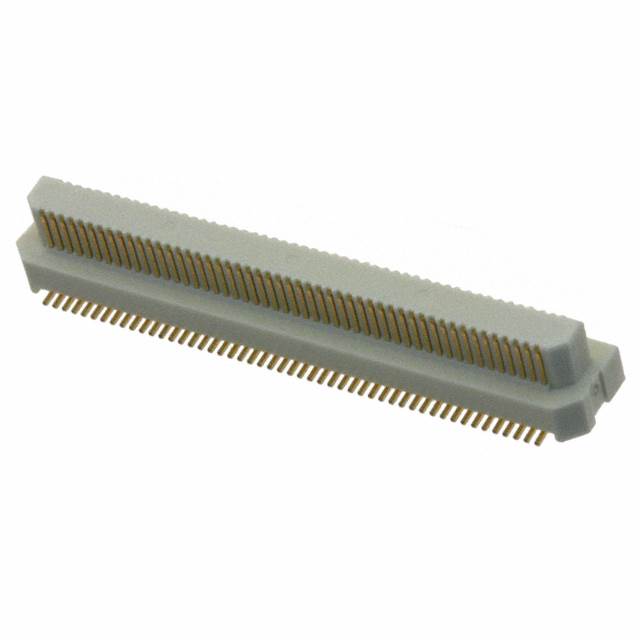

AXK6S00447YA

Active

Panasonic Electric Works

CONN HDR 100POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK6S00447YA

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights	4 mm, 4.5 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Mated Stacking Heights	Number of Rows	Connector Type
Panasonic Electric Works AXK6S00447YA	0.13 in	3.3 mm	Gold	Surface Mount	0.5 mm	0.02 in	100	4 mm 4.5 mm 7 mm	2	Header Outer Shroud Contacts
Panasonic Electric Works AXK6S00447YG	0.13 in	3.3 mm	Gold	Surface Mount	0.5 mm	0.02 in	100	4 mm 4.5 mm 7 mm	2	Header Outer Shroud Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

No documents available
