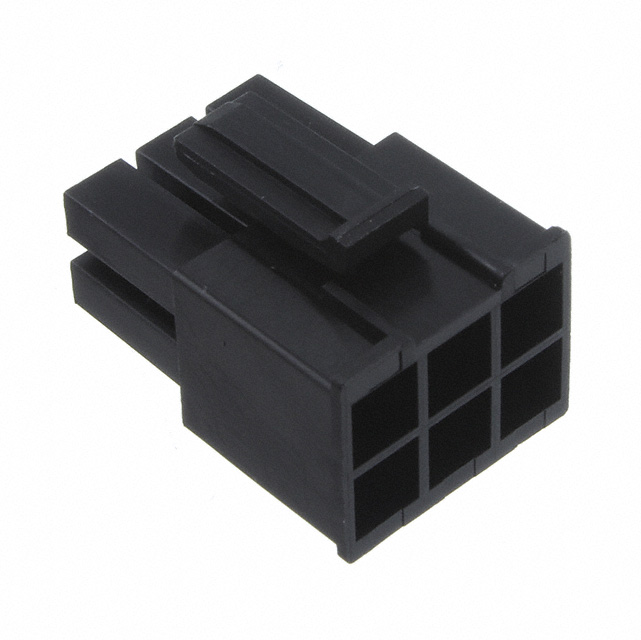

10142707-06LF

Active

Amphenol ICC (FCI)

CONN RCPT HSG 6POS 5.70MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HSG 6POS 5.70MM

Technical Specifications

Parameters and characteristics for this part

Specification	10142707-06LF

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Glow Wire Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Halogen Free
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.224 in
Pitch [x]	5.7 mm
Row Spacing	0.224 in
Row Spacing	5.7 mm

Part	Insulation Material	Color	Number of Positions	Mounting Type	Contact Type	Connector Type	Features	Number of Rows	Contact Termination	Note	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing
Amphenol ICC (FCI) 10142707-12LF	Polyamide (PA66) Nylon 6/6 Halogen Free	Black	12	Free Hanging (In-Line)	Female Socket	Receptacle	Glow Wire Compliant	2	Crimp	Contacts Not Included	-40 °C	105 ░C	Latch Holder	0.224 in	5.7 mm	0.224 in	5.7 mm
Amphenol ICC (FCI) 10142707-06LF	Polyamide (PA66) Nylon 6/6 Halogen Free	Black	6	Free Hanging (In-Line)	Female Socket	Receptacle	Glow Wire Compliant	2	Crimp	Contacts Not Included	-40 °C	105 ░C	Latch Holder	0.224 in	5.7 mm	0.224 in	5.7 mm
Amphenol ICC (FCI) 10142707-02LF	Polyamide (PA66) Nylon 6/6 Halogen Free	Black	2	Free Hanging (In-Line)	Female Socket	Receptacle	Glow Wire Compliant	2	Crimp	Contacts Not Included	-40 °C	105 ░C	Latch Holder			0.224 in	5.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.224" (5.70mm)
