HMTMS-110-25-G-D-125-006
ActiveSamtec Inc.

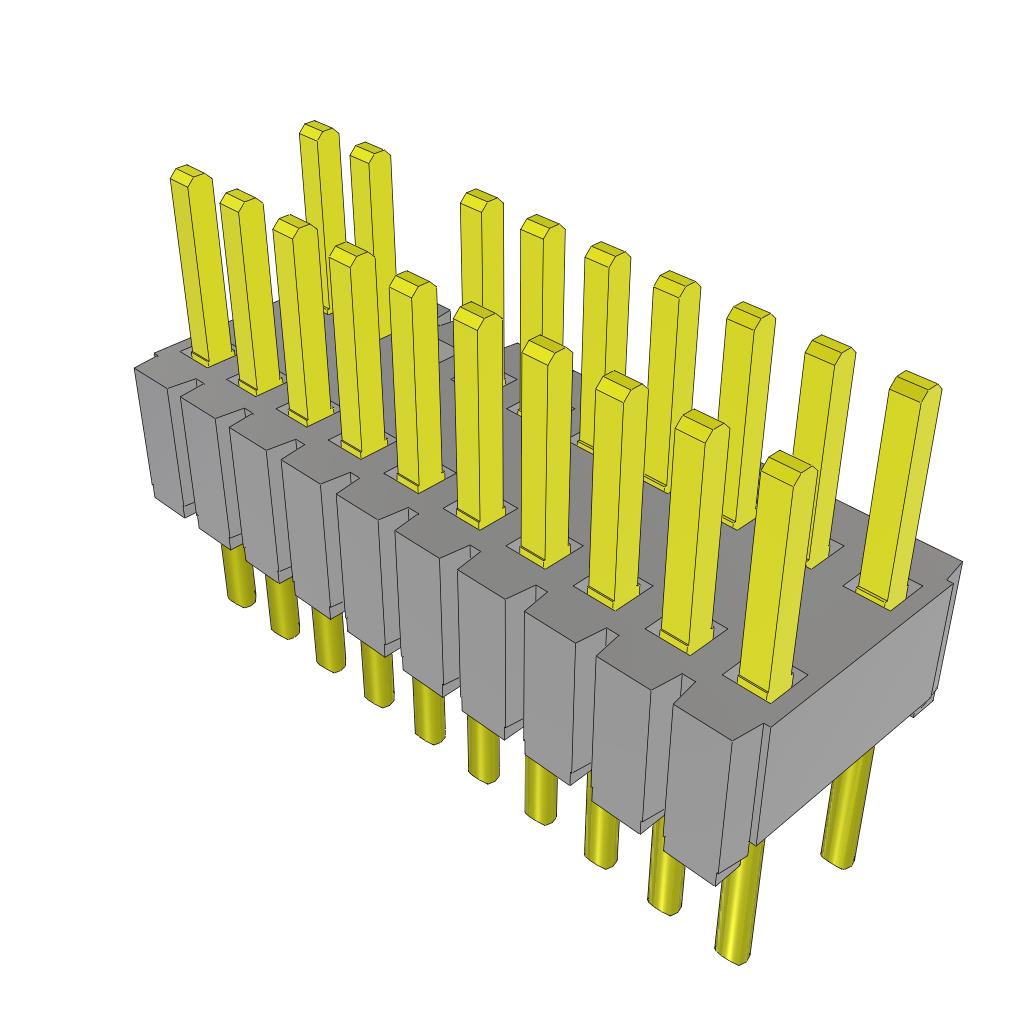

CONN UNSHROUDED HEADER HDR 20 POS 1.27MM SOLDER ST THRU-HOLE TUBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HMTMS-110-25-G-D-125-006 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 0.125 in |
| Contact Length - Mating | 3.18 mm |
| Contact Length - Post | 2.67 mm |
| Contact Length - Post | 0.105 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | 19 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 8.38 mm |
| Overall Contact Length | 0.33 in |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Termination | Solder |
HMTMS-110 Series
| Part | Contact Length - Mating | Contact Length - Mating | Number of Positions | Shrouding | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Termination | Contact Shape | Contact Finish - Post | Mounting Type | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Insulation Material | Connector Type | Insulation Color | Contact Type | Contact Material | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Post | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.125 in | 3.18 mm | 10 | Unshrouded | Gold | 0.05 in | 1.27 mm | All | 8.38 mm | 0.33 in | Solder | Square | Tin | Through Hole | Push-Pull | -55 °C | 125 °C | 30 Áin | 0.76 Ám | 1 | Liquid Crystal Polymer (LCP) | Header | Black | Male Pin | Phosphor Bronze | 0.1 in | 2.54 mm | 2.67 mm | 0.105 in | ||||||
Samtec Inc. | 0.125 in | 3.18 mm | 20 | Unshrouded | Gold | 0.05 in | 1.27 mm | All | 8.38 mm | 0.33 in | Solder | Square | Tin | Through Hole | Push-Pull | -55 °C | 125 °C | 30 Áin | 0.76 Ám | 2 | Liquid Crystal Polymer (LCP) | Header | Black | Male Pin | Phosphor Bronze | 0.1 in | 2.54 mm | 2.67 mm | 0.105 in | 2.54 mm | 0.1 in | ||||
Samtec Inc. | 0.19 " | 4.83 mm | 20 | Unshrouded | Gold | 0.05 in | 1.27 mm | All | 10.41 mm | 0.41 in | Solder | Square | Gold | Through Hole | Push-Pull | -55 °C | 125 °C | 10 çin | 0.25 çm | 2 | Liquid Crystal Polymer (LCP) | Header | Black | Male Pin | Phosphor Bronze | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Flash | 0.12 in | 3.05 mm | |||
Samtec Inc. | 0.1 in | 2.54 mm | 10 | Unshrouded | Gold | 0.05 in | 1.27 mm | All | Solder | Square | Gold | Through Hole | Push-Pull | -55 °C | 125 °C | 10 çin | 0.25 çm | 1 | Liquid Crystal Polymer (LCP) | Header | Black | Male Pin | Phosphor Bronze | 0.1 in | 2.54 mm | Flash | 0.12 in | 3.05 mm | |||||||
Samtec Inc. | 0.125 in | 3.18 mm | 20 | Unshrouded | Gold | 0.05 in | 1.27 mm | 8.38 mm | 0.33 in | Solder | Square | Gold | Through Hole | Push-Pull | -55 °C | 125 °C | 10 çin | 0.25 çm | 2 | Liquid Crystal Polymer (LCP) | Header | Black | Male Pin | Phosphor Bronze | 0.1 in | 2.54 mm | 2.67 mm | 0.105 in | 2.54 mm | 0.1 in | Flash | 19 | |||
Samtec Inc. | 0.605 in | 15.37 mm | 20 | Unshrouded | Gold | 0.05 in | 1.27 mm | All | 20.96 mm | 0.825 in | Solder | Square | Gold | Through Hole | Push-Pull | -55 °C | 125 °C | 10 çin | 0.25 çm | 2 | Liquid Crystal Polymer (LCP) | Header | Black | Male Pin | Phosphor Bronze | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Flash | 0.12 in | 3.05 mm | |||
Samtec Inc. | 0.334 in | 8.48 mm | 10 | Unshrouded | Gold | 0.05 in | 1.27 mm | All | 14.1 mm | 0.555 in | Solder | Square | Gold | Through Hole | Push-Pull | -55 °C | 125 °C | 10 çin | 0.25 çm | 1 | Liquid Crystal Polymer (LCP) | Header | Black | Male Pin | Phosphor Bronze | 0.1 in | 2.54 mm | 3.08 mm | 0.121 in | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HMTMS-110 Series
Connector Header Through Hole 20 position 0.050" (1.27mm)
