T2020642101-000

Active

TE Connectivity AMP Connectors

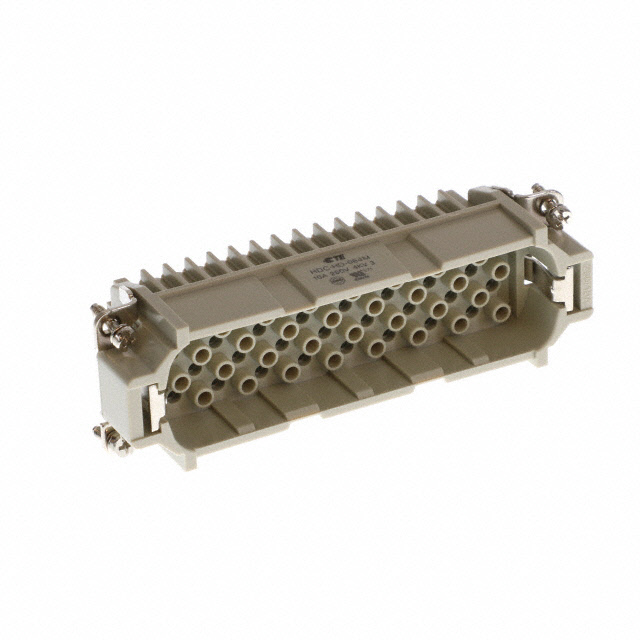

INSERT MALE 64POS+1GND CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

INSERT MALE 64POS+1GND CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T2020642101-000	T2020 Series

Color	Gray	Gray
Connector Type	Insert without Contacts	Insert without Contacts
Contact Finish	-	Gold
Contact Finish Thickness	-	0.75 µm
Contact Finish Thickness	-	29.5 µin
Contact Termination	-	Crimp
Contact Type	DD, CD	DD, CD
Current Rating (Amps)	10 A	10 A
Gender	Male	Male
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	64+Ground	64+Ground
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pin or Socket	-	Socket
Size	H24B	H24B
Termination Style	Crimp	Crimp
Voltage Rating	250 VDC	250 VDC
Wire Gauge	-	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DDF-0.75

Part	Pin or Socket	Contact Termination	Wire Gauge	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Current Rating (Amps)	Contact Type	Color	Size	Termination Style	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Material Flammability Rating	Gender
TE Connectivity AMP Connectors T2020012008-000	Socket	Crimp	18 AWG	Gold	0.75 µm	29.5 µin
TE Connectivity AMP Connectors T2020642101-000							Insert without Contacts	10 A	CD, DD	Gray	H24B	Crimp	Polycarbonate (PC)	125 °C	-40 °C	64+Ground	250 VDC	UL94 V-0	Male

General part information

Male Insert without Contacts Gray 64+Ground Position Crimp
