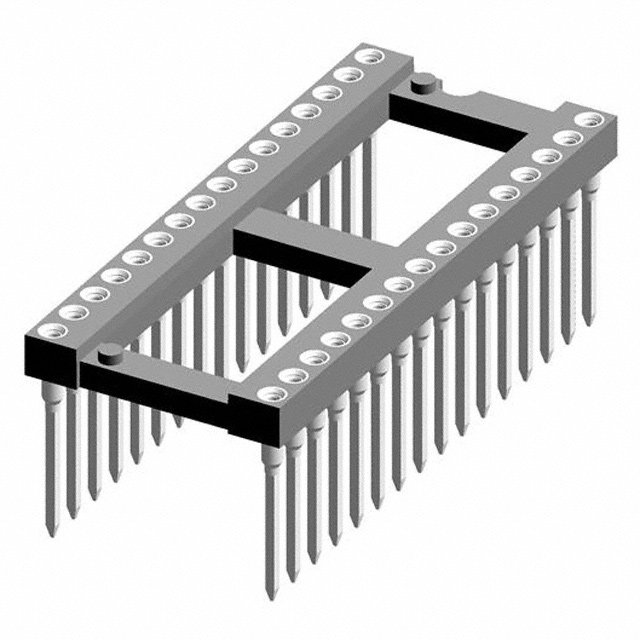

122-87-632-41-001101

Active

Preci-Dip

CONN IC DIP SOCKET 32POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

122-87-632-41-001101

Active

Preci-Dip

CONN IC DIP SOCKET 32POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	364	$ 3.62

Description

General part information

122-87 Series

32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	122-87-632-41-001101	122-87 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	-	14 - 36
Number of Positions or Pins (Grid)	-	2
Number of Positions or Pins (Grid)	-	6
Number of Positions or Pins (Grid)	-	3
Number of Positions or Pins (Grid)	-	4
Number of Positions or Pins (Grid)	-	10
Number of Positions or Pins (Grid) [custom]	2 x 16	2 x 16, 2 x 5
Number of Positions or Pins (Grid) [custom]	32	32
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Wire Wrap	Wire Wrap
Termination Post Length	9.4 mm	9.4 mm
Termination Post Length	0.37 in	0.37 in
Type	DIP	DIP
Type	0.6 in	0.3 - 0.6 in
Type	15.24 mm	7.62 - 15.24 mm

122-87 Series

CONN IC DIP SOCKET 32POS GOLD

Part	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Termination	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Type	Type	Type	Features	Contact Resistance	Housing Material	Contact Finish Thickness - Mating	Contact Finish - Post	Termination Post Length	Termination Post Length	Mounting Type	Contact Finish - Mating	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 122-87-432-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap	2 x 16	32	UL94 V-0	0.4 in	10.16 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A
Preci-Dip 122-87-636-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.6 in	15.24 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	36
Preci-Dip 122-87-316-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	16
Preci-Dip 122-87-322-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	22
Preci-Dip 122-87-632-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap	2 x 16	32	UL94 V-0	0.6 in	15.24 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A
Preci-Dip 122-87-306-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A		2	6	3
Preci-Dip 122-87-304-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A					4
Preci-Dip 122-87-314-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	14
Preci-Dip 122-87-310-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap	2 x 5		UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A						10
Preci-Dip 122-87-420-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.4 in	10.16 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	20
