N2524-5002-RB

Active

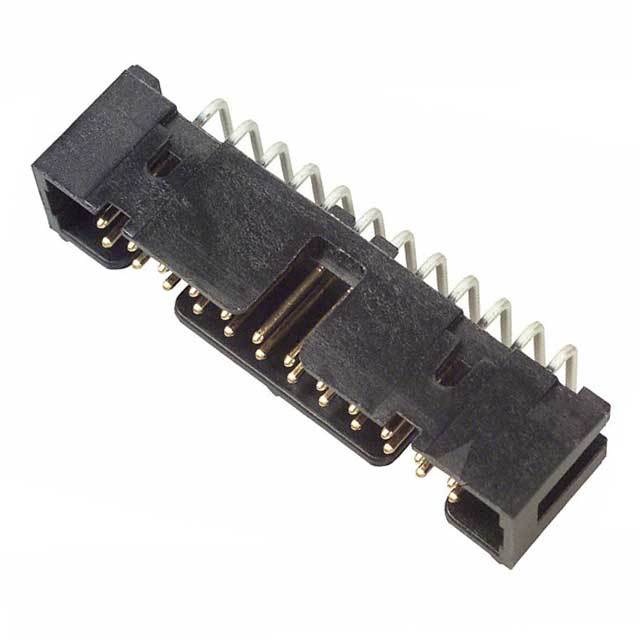

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2524-5002-RB

Active

CONN HEADER R/A 24POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.35
		10	$ 3.95
		392	$ 3.04
		784	$ 2.70
		1176	$ 2.52

Description

General part information

N2524 Series

Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2524-5002-RB	N2524 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.338 in	0.338 in
Insulation Height	8.59 mm	8.59 mm
Insulation Height	-	9.91 mm
Insulation Height	-	0.39 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	24	24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Kinked Pin, Solder

N2524 Series

CONN HEADER VERT 24POS 2.54MM

Part	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Shrouding	Termination	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Insulation Material	Insulation Height [z]	Insulation Height [z]	Style	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions	Features	Contact Shape	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Type	Insulation Height	Insulation Height
3M N2524-6002-UB	All	Tin-Lead	2.84 mm	0.112 in	Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Through Hole
3M N2524-6002-UG	All	Tin-Lead	2.84 mm	0.112 in	Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	15 µin	0.38 µm	105 ░C	-55 °C	Gold	Through Hole
3M N2524-5002-RB	All	Tin	2.84 mm	0.112 in	Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester			Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Through Hole, Right Angle	0.338 in	8.59 mm
3M N2524-6V0C-RB-WE	All	Tin			Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot, Pick and Place	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Surface Mount
3M N2524-6003-RB	All	Tin	3.94 mm	0.155 "	Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Through Hole
3M N2524-60K2-RB	All	Tin	2.84 mm	0.112 in	Shrouded - 4 Wall	Kinked Pin, Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Through Hole
