N2524-6V0C-RB-WE

Active

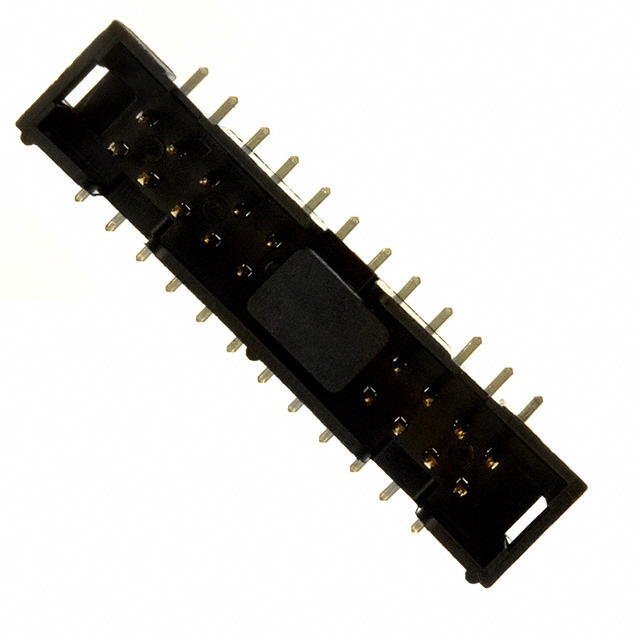

CONN HEADER SMD 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2524-6V0C-RB-WE

Active

CONN HEADER SMD 24POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2524-6V0C-RB-WE	N2524 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.84 - 3.94 mm
Contact Length - Post	-	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	-	0.338 in
Insulation Height	-	8.59 mm
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	24	24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder, Kinked Pin, Solder

N2524 Series

CONN HEADER VERT 24POS 2.54MM

Part	Number of Positions Loaded	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Shrouding	Termination	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Insulation Material	Insulation Height [z]	Insulation Height [z]	Style	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Material	Number of Positions	Features	Contact Shape	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Type	Insulation Height	Insulation Height
3M N2524-6002-UB	All	Tin-Lead	2.84 mm	0.112 in	Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Through Hole
3M N2524-6002-UG	All	Tin-Lead	2.84 mm	0.112 in	Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	15 µin	0.38 µm	105 ░C	-55 °C	Gold	Through Hole
3M N2524-5002-RB	All	Tin	2.84 mm	0.112 in	Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester			Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Through Hole, Right Angle	0.338 in	8.59 mm
3M N2524-6V0C-RB-WE	All	Tin			Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot, Pick and Place	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Surface Mount
3M N2524-6003-RB	All	Tin	3.94 mm	0.155 "	Shrouded - 4 Wall	Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Through Hole
3M N2524-60K2-RB	All	Tin	2.84 mm	0.112 in	Shrouded - 4 Wall	Kinked Pin, Solder	1.75 A	2.54 mm	0.1 in	2	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	9.91 mm	0.39 in	Board to Board, Cable	Black	200 µin	5.08 µm	Header	Male Pin	UL94 V-0	0.1 in	2.54 mm	Copper Alloy	24	Keying Slot	Square	Push-Pull	30 Áin	0.76 Ám	105 ░C	-55 °C	Gold	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.08
		10	$ 5.52
		100	$ 4.86
	Digi-Reel®	1	$ 6.08
		10	$ 5.52
		100	$ 4.86
	Tape & Reel (TR)	200	$ 4.86
		400	$ 4.25
		600	$ 4.13
		1000	$ 3.52
		2000	$ 3.40

Description

General part information

N2524 Series

Connector Header Surface Mount 24 position 0.100" (2.54mm)
