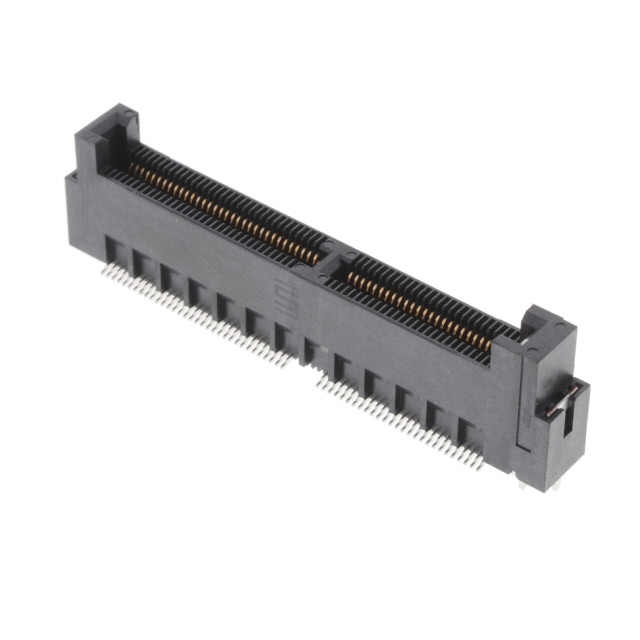

MEC5-060-01-L-DV-W1-K-TR

Active

Samtec Inc.

CONN EDGE DUAL FML 120POS 0.020

Search across all available documentation for this part.

Active

Samtec Inc.

CONN EDGE DUAL FML 120POS 0.020

Technical Specifications

Parameters and characteristics for this part

Specification	MEC5-060-01-L-DV-W1-K-TR

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Features	Pick and Place, Board Guide, Solder Retention
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	120
Number of Positions/Bay/Row [custom]	60
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Read Out	Dual
Termination	Solder

Part	Gender	Termination	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Mounting Type	Read Out	Card Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]	Color	Card Thickness	Card Thickness	Number of Positions/Bay/Row [custom]	Contact Material
Samtec Inc. MEC5-060-01-L-DV-W1-K-TR	Female	Solder	Gold	120	10 Áin	0.25 Ám	Liquid Crystal Polymer (LCP)	Surface Mount	Dual	Non Specified - Dual Edge	Board Guide Pick and Place Solder Retention	-55 °C	125 °C	2	0.5 mm	0.02 in	Black	0.062 in	1.57 mm	60	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Female Connector Non Specified - Dual Edge Gold 0.020" (0.50mm) Black
