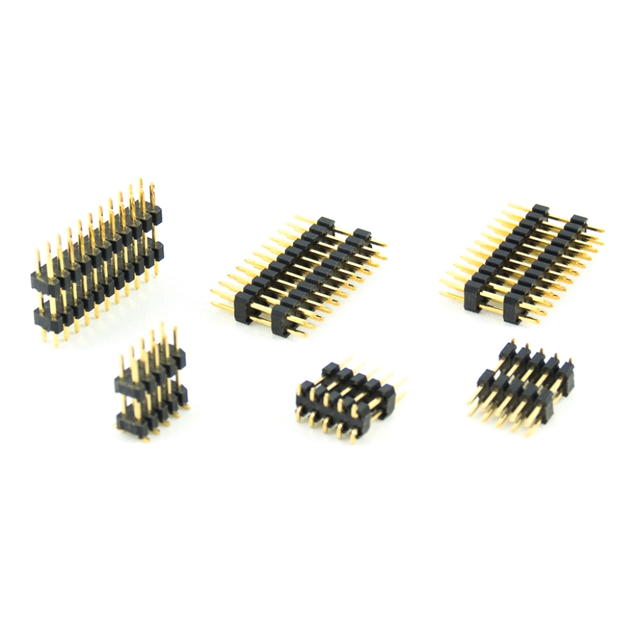

2114-2X20G00D/069/118T-P

Active

Oupiin

PIN HEADER, DOUBLE ROW, 40 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2114-2X20G00D/069/118T-P

Active

Oupiin

PIN HEADER, DOUBLE ROW, 40 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.60

Description

General part information

2114-2 Series

40 Position Header Spacer Connector Gold Surface Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2114-2X20G00D/069/118T-P	2114-2 Series

	-	-
Color	-	Black
Contact Finish - Post (Mating)	Gold	Gold
Contact Finish Thickness - Post (Mating)	Flash	Flash
Length - Overall Pin	-	10.5 - 21.1 mm
Length - Overall Pin	-	0.413 - 0.831 in
Length - Overall Pin [x]	0.465 in	0.465 - 1.043 in
Length - Overall Pin [x]	11.8 mm	11.8 - 26.5 mm
Length - Post (Mating) [x]	6.9 mm	2.8 - 8 mm
Length - Post (Mating) [x]	0.272 in	0.11 - 0.315 in
Length - Stack Height	-	5.6 - 20.904 mm
Length - Stack Height	-	0.22 - 0.823 in
Length - Stack Height	-	4.5 mm
Length - Stack Height	-	0.177 in
Length - Tail	-	0.118 - 0.126 in
Length - Tail	-	3 - 3.2 mm
Length - Tail	-	2.8 - 3.8 mm
Length - Tail	-	0.11 - 0.15 in
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Positions	40	6 - 60
Number of Rows	2	2
Pitch	-	0.079 in
Pitch	-	2 mm
Row Spacing	-	2 mm
Row Spacing	-	0.079 in
Termination	Solder	Solder

2114-2 Series

PIN HEADER, DOUBLE ROW, 32 PIN,

Part	Row Spacing	Row Spacing	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish Thickness - Post (Mating)	Color	Termination	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Length - Tail	Length - Tail	Number of Positions
Oupiin 2114-2X16G00S-3-3-17.5B	2 mm	0.079 in	2	0.079 in	2 mm	Through Hole	0.118 in	3 mm	11.5 mm	0.453 in	Flash	Black	Solder	17.5 mm	0.689 in	0.118 in	3 mm	Gold
Oupiin 2114-2X16G00S-3.2-3.2-12B	2 mm	0.079 in	2	0.079 in	2 mm	Through Hole	0.126 in	3.2 mm	5.6 mm	0.22 in	Flash	Black	Solder	12 mm	0.472 in	0.126 in	3.2 mm	Gold
Oupiin 2114-2X16G00S3-3-14B	2 mm	0.079 in	2	0.079 in	2 mm	Through Hole	0.118 in	3 mm	8 mm	0.315 in	Flash	Black	Solder	14 mm	0.551 in	0.118 in	3 mm	Gold
Oupiin 2114-2X20G00S/033/044/K
Oupiin 2114-2X20G00S/3.8/4.6/21.1B	2 mm	0.079 in	2	0.079 in	2 mm	Through Hole	0.181 in	4.6 mm	12.7 mm	0.5 in	Flash	Black	Solder					Gold	21.1 mm	0.831 in	3.8 mm	0.15 in	40
Oupiin 2114-2X03G00S-3.2-3.2-12B	2 mm	0.079 in	2	0.079 in	2 mm	Through Hole	0.126 in	3.2 mm	5.6 mm	0.22 in	Flash	Black	Solder	12 mm	0.472 in	0.126 in	3.2 mm	Gold					6
Oupiin 2114-2X20G00D/069/118T-P			2			Surface Mount	0.272 in	6.9 mm			Flash		Solder	11.8 mm	0.465 in			Gold					40
Oupiin 2114-2X12G00S-2.8-8-17.1B	2 mm	0.079 in	2	0.079 in	2 mm	Through Hole	0.315 in	8 mm	6.3 mm	0.248 in	Flash	Black	Solder	17.1 mm	0.673 in			Gold			2.8 mm	0.11 in	24
Oupiin 2114-2X10G00S-3-3-17.5B	2 mm	0.079 in	2	0.079 in	2 mm	Through Hole	0.118 in	3 mm	11.5 mm	0.453 in	Flash	Black	Solder	17.5 mm	0.689 in	0.118 in	3 mm	Gold					20
Oupiin 2114-2X30G00S/2.8/2.8/26.5B	2 mm	0.079 in	2	0.079 in	2 mm	Through Hole	0.11 in	2.8 mm	20.904 mm	0.823 in	Flash	Black	Solder	26.5 mm	1.043 in			Gold			2.8 mm	0.11 in	60
