DSPIC33EV64GM103-E/M5
Active5V ROBUST DSC WITH CAN, SAFETY, MOTOR CONTROL
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33EV64GM103-E/M5
Active5V ROBUST DSC WITH CAN, SAFETY, MOTOR CONTROL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DSPIC33EV64GM103-E/M5 | DSPIC33EV64GM103 Series |
|---|---|---|
| Connectivity | IrDA, UART/USART, I2C, CANbus, SPI, LINbus | IrDA, UART/USART, I2C, CANbus, SPI, LINbus |
| Core Processor | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit |
| Data Converters | 13x10b/12b | 13x10b/12b |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 25 | 25 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |

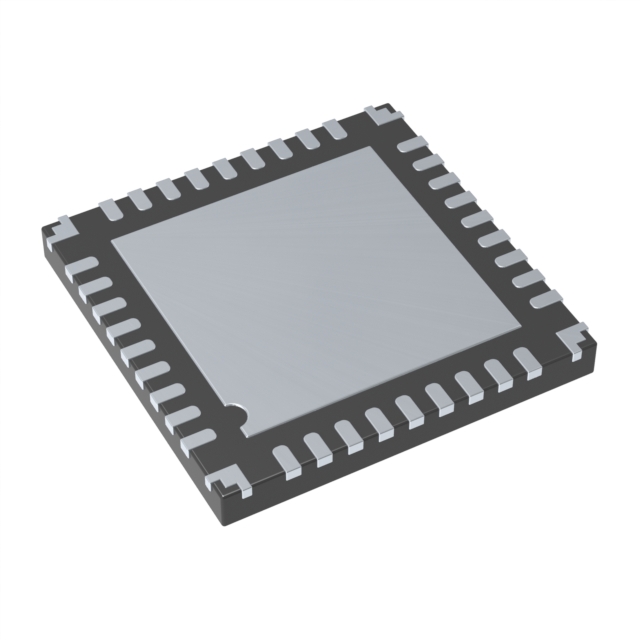

| Package / Case | 36-UFQFN Exposed Pad | 36-UFQFN Exposed Pad |
| Peripherals | Motor Control PWM, PWM, POR, WDT, Brown-out Detect/Reset, DMA | Motor Control PWM, PWM, POR, WDT, Brown-out Detect/Reset, DMA |
| Program Memory Size | 64 KB | 64 KB |
| Program Memory Type | FLASH | FLASH |
| Qualification | AEC-Q100 | AEC-Q100 |
| RAM Size | 8 K | 8 K |
| Speed | 60 MIPs | 60 - 70 MIPs |
| Supplier Device Package | 36-UQFN (5x5) | 36-UQFN (5x5) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.68 | |
| 25 | $ 4.29 | |||
| 100 | $ 3.88 | |||
| Microchip Direct | TUBE | 1 | $ 4.68 | |
| 25 | $ 4.29 | |||
| 100 | $ 3.88 | |||
| 1000 | $ 3.58 | |||
| 5000 | $ 3.40 | |||
DSPIC33EV64GM103 Series
5V Robust DSC with CAN, Safety, Motor Control
| Part | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Package / Case | RAM Size | Data Converters | Core Processor | Qualification | Mounting Type | Peripherals | Grade | Connectivity | Operating Temperature [Min] | Operating Temperature [Max] | Oscillator Type | Number of I/O | Supplier Device Package | Core Size | Program Memory Size | Program Memory Type | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology DSPIC33EV64GM103-E/M5 | 5.5 V | 4.5 V | 36-UFQFN Exposed Pad | 8 K | 13x10b/12b | dsPIC | AEC-Q100 | Surface Mount | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | Automotive | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | -40 °C | 125 °C | Internal | 25 | 36-UQFN (5x5) | 16-Bit | 64 KB | FLASH | 60 MIPs |
Microchip Technology DSPIC33EV64GM103T-I/M5 | 5.5 V | 4.5 V | 36-UFQFN Exposed Pad | 8 K | 13x10b/12b | dsPIC | Surface Mount | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | -40 °C | 85 °C | Internal | 25 | 36-UQFN (5x5) | 16-Bit | 64 KB | FLASH | 70 MIPs | ||
Microchip Technology DSPIC33EV64GM103-I/M5 | 5.5 V | 4.5 V | 36-UFQFN Exposed Pad | 8 K | 13x10b/12b | dsPIC | Surface Mount | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | CANbus, I2C, IrDA, LINbus, SPI, UART/USART | -40 °C | 85 °C | Internal | 25 | 36-UQFN (5x5) | 16-Bit | 64 KB | FLASH | 70 MIPs |
Description
General part information
DSPIC33EV64GM103 Series
Microchip’s dsPIC33EV family of digital signal controllers (DSCs) features a 5V 70 MIPS dsPIC® DSC core with enhanced on-chip features and is ideal for operating in harsh environments such as appliances, industrial and automotive applications. The 5V dsPIC33EV family comes with rich peripheral integration which includes CAN, SENT, High Speed PWMs, OP Amps and Error Correcting Code Flash for increased reliability and safety. The dsPIC33EV family of devices enable the design of high-performance, precision motor control systems that are more energy efficient. They can be used to control BLDC, permanent magnet synchronous, AC induction and stepper motors. These devices are ideal for high-performance general purpose, Touch, advanced sensor interfacing and control applications in automotive, industrial, consumer and medical segments.
The functional safety ready dsPIC33EVXXXGM00X/10X family has many features that help simplify achieving ISO 26262 functional safety compliance of your safety-critical designs. The family offers:
• Functional Safety Manual and FMEDA report
