3547S-1AB-502A

Active

Bourns Inc.

PRECISION POT-7/8" 22MM DIA 3T WW /TRAY PACKAGING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3547S-1AB-502A

Active

Bourns Inc.

PRECISION POT-7/8" 22MM DIA 3T WW /TRAY PACKAGING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3547S-1AB-502A

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [x]	20.6 mm
Actuator Length [x]	0.811 in
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	M9 x 0.75
Number of Gangs	1
Number of Turns	3
Power (Watts)	1 W
Resistance (Ohms)	5 kOhms
Resistive Material	Wirewound
Rotation	1080 °
Size - Body [diameter]	22.48 mm
Size - Body [diameter]	0.885 in
Taper	Linear
Temperature Coefficient	50 ppm/°C
Termination Style	Solder Lug
Tolerance	3 %

3547S Series

Part	Number of Gangs	Termination Style	Bushing Thread	Adjustment Type	Resistance (Ohms)	Actuator Diameter	Actuator Diameter [diameter]	Actuator Type	Actuator Length [z]	Actuator Length [z]	Temperature Coefficient	Number of Turns	Taper	Size - Body [diameter]	Size - Body [diameter]	Power (Watts)	Tolerance	Rotation	Resistive Material	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Actuator Diameter [diameter]
Bourns Inc. 3547S-1AC-203B	1	Solder Lug	3/8-32	User Defined	20 kOhms	6.35 mm	0.25 in	Slotted	0.813 in	20.64 mm	50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound
Bourns Inc. 3547S-1BB-103A	1	Solder Lug	M9 x 0.75	User Defined			0.236 in	Slotted			50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound	10k	20.6 mm	0.811 in	6 mm
Bourns Inc. 3547S-1AC-503B	1	Solder Lug	3/8-32	User Defined	50 kOhms	6.35 mm	0.25 in	Slotted	0.813 in	20.64 mm	50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound
Bourns Inc. 3547S-1AC-102A	1	Solder Lug	3/8-32	User Defined	1 kOhms	6.35 mm	0.25 in	Slotted	0.813 in	20.64 mm	50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound
Bourns Inc. 3547S-1AB-502A	1	Solder Lug	M9 x 0.75	User Defined	5 kOhms		0.236 in	Slotted			50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound		20.6 mm	0.811 in	6 mm
Bourns Inc. 3547S-1AA-103A	1	Solder Lug	3/8-32	User Defined		6.35 mm	0.25 in	Slotted	0.813 in	20.64 mm	50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound	10k
Bourns Inc. 3547S-1BA-501A	1	Solder Lug	3/8-32	User Defined	500 Ohms	6.35 mm	0.25 in	Slotted	0.813 in	20.64 mm	50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound
Bourns Inc. 3547S-1AC-103B	1	Solder Lug	3/8-32	User Defined		6.35 mm	0.25 in	Slotted	0.813 in	20.64 mm	50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound	10k
Bourns Inc. 3547S-1AA-202A	1	Solder Lug	3/8-32	User Defined		6.35 mm	0.25 in	Slotted	0.813 in	20.64 mm	50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound	2k
Bourns Inc. 3547S-1AG-103A	1	Solder Lug	3/8-32	User Defined		6.35 mm	0.25 in	Slotted	0.813 in	20.64 mm	50 ppm/°C	3	Linear	22.48 mm	0.885 in	1 W	3 %	1080 °	Wirewound	10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 21.35
Newark	Each	50	$ 18.24
		100	$ 17.84
		250	$ 17.31

Description

General part information

3547S Series

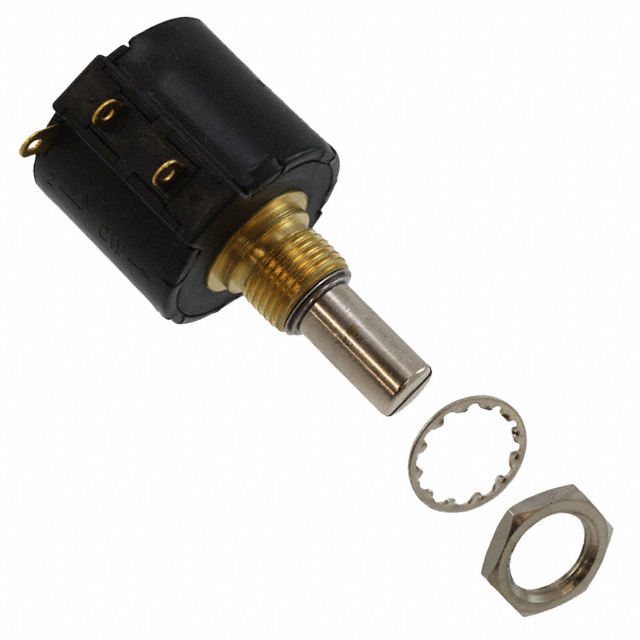

5k Ohm 1 Gang Linear Panel Mount Potentiometer 3.0 Turns Wirewound 1W Solder Lug
