26FLZ-SM2-TB

Active

JST Sales America Inc.

CONN FFC FPC TOP 26POS 0.5MM R/A

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN FFC FPC TOP 26POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	26FLZ-SM2-TB

Actuator Color	Black
Actuator Material	Polyamide (PA6T), Nylon 6T
Cable End Type	Tapered
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.079 in
Height Above Board	2 mm
Housing Color	Gray
Housing Material	Polyamide (PA6T), Nylon 6T
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Number of Positions	Connector/Contact Type	Pitch [x]	Pitch [x]	Locking Feature	Contact Finish	Voltage Rating	Actuator Material	Housing Material	Height Above Board	Height Above Board	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Current Rating (Amps)	Features	Flat Flex Type	Contact Material	FFC, FCB Thickness	Cable End Type	Material Flammability Rating	Actuator Color	Mounting Type
JST Sales America Inc. 26FLZ-SM2-TB	26	Contacts Top	0.5 mm	0.02 in	Slide Lock	Tin	50 V	Polyamide (PA6T) Nylon 6T	Polyamide (PA6T) Nylon 6T	0.079 in	2 mm	Gray	-25 °C	85 °C	Solder	0.5 A	Solder Retention Zero Insertion Force (ZIF)	FFC FPC	Phosphor Bronze	0.3 mm	Tapered	UL94 V-0	Black	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.78

General part information

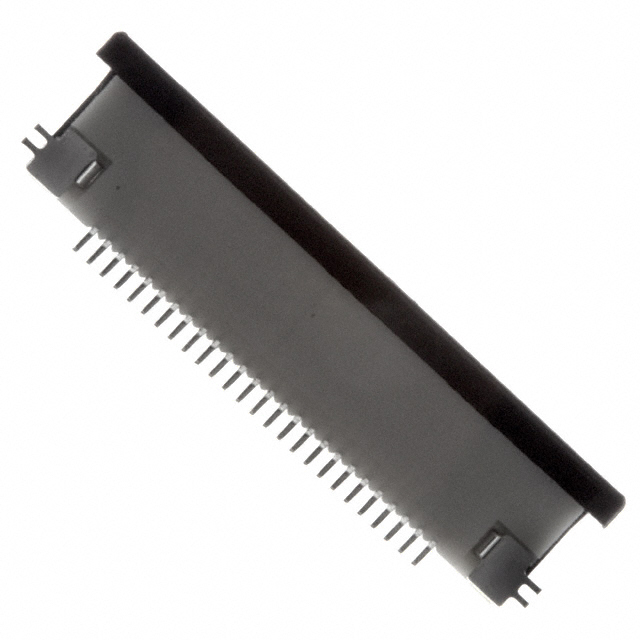

26 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
