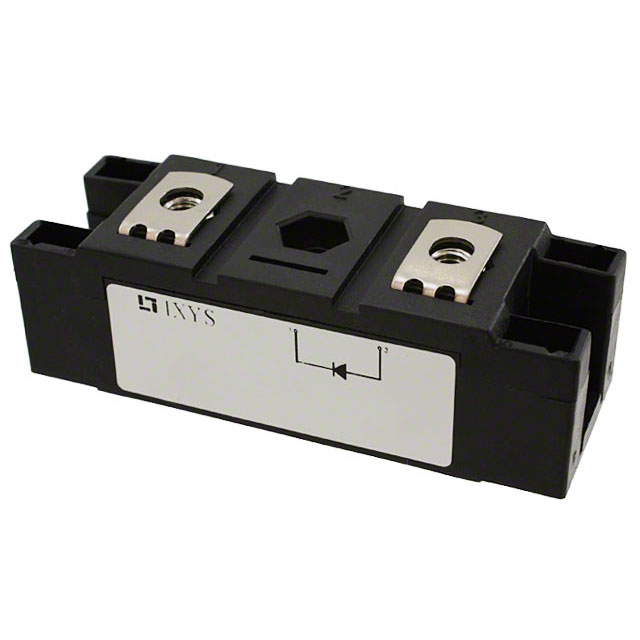

MEO450-12DA

Active

IXYS

DIODE GEN PURP 1.2KV 453A Y4-M6

Search across all available documentation for this part.

Active

IXYS

DIODE GEN PURP 1.2KV 453A Y4-M6

Technical Specifications

Parameters and characteristics for this part

Specification	MEO450-12DA

Current - Average Rectified (Io)	453 A
Current - Reverse Leakage @ Vr	24 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Y4-M6
Reverse Recovery Time (trr)	500 ns
Speed	200 mA, 500 ns
Supplier Device Package	Y4-M6
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.96 V

Part	Voltage - Forward (Vf) (Max) @ If	Package / Case	Reverse Recovery Time (trr)	Mounting Type	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)
IXYS MEO450-12DA	1.96 V	Y4-M6	500 ns	Chassis Mount	Y4-M6	1.2 kV	150 °C	-40 °C	200 mA 500 ns	24 mA	Standard	453 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1200 V 453A Chassis Mount Y4-M6
