PWC-03BMFB-LL7LPP

Active

Amphenol LTW

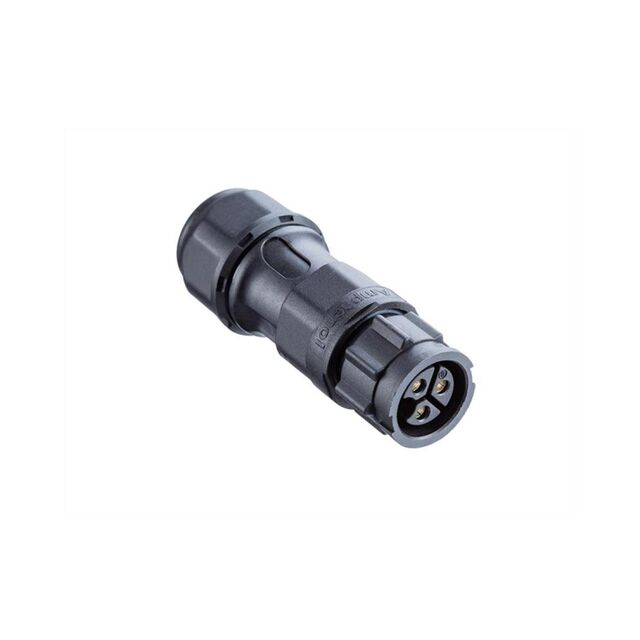

POWER, PWC, PLASTIC, 20A, 03 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, SCREW-IN, FIELD INSTALLABLE, 10.1 -

Search across all available documentation for this part.

Active

Amphenol LTW

POWER, PWC, PLASTIC, 20A, 03 PINS, MALE CONNECTOR, FEMALE CONTACT, STRAIGHT, 2 POINTS LOCK, SCREW-IN, FIELD INSTALLABLE, 10.1 -

Technical Specifications

Parameters and characteristics for this part

Specification	PWC-03BMFB-LL7LPP

Cable Opening [custom]	0.472 in, 0.398 in
Cable Opening [custom]	12 mm, 10.1 mm
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 V

Part	Primary Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insert Material	Voltage Rating	Connector Type	Contact Material	Shell Material	Mounting Feature	Current Rating (Amps)	Shielding	Termination	Fastening Type	Orientation	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Amphenol LTW PWC-03BMFB-LL7LPP	Plastic	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Gold	Polyamide (PA) Nylon Glass Filled	277 V	Receptacle Female Sockets	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Bulkhead - Front Side Nut	20 A	Unshielded	Screw	Bayonet Lock	Keyed	0.398 in 0.472 in	10.1 mm 12 mm
Amphenol LTW PWC-03BMFB-LL7MPP	Plastic	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Gold	Polyamide (PA) Nylon Glass Filled	277 V	Receptacle Female Sockets	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Bulkhead - Front Side Nut	20 A	Unshielded	Screw	Bayonet Lock	Keyed			0.394 in	10 mm	8.1 mm	0.319 in
Amphenol LTW PWC-03BMFB-LL7SPP	Plastic	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Gold	Polyamide (PA) Nylon Glass Filled	277 V	Receptacle Female Sockets	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Bulkhead - Front Side Nut	20 A	Unshielded	Screw	Bayonet Lock	Keyed							8 mm	6 mm	0.315 in	0.236 in
