RTQ9728WGQW(2)
ActiveRichtek USA Inc.
IC CURRENT LIMIT SWITCH WDFN-6S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTQ9728WGQW(2)
ActiveRichtek USA Inc.
IC CURRENT LIMIT SWITCH WDFN-6S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ9728WGQW(2) |
|---|---|
| Current - Output (Max) [Max] | 2.5 A |
| Fault Protection | Reverse Battery, UVLO, Short Circuit, Current Limiting (Fixed), Over Temperature |
| Features | Load Discharge, Status Flag |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 74 mOhm |

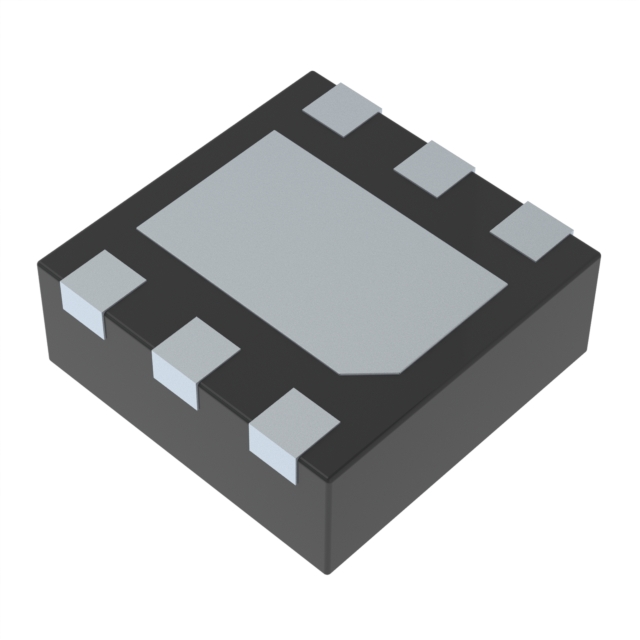

| Supplier Device Package | 6-WDFN (2x2) |
| Switch Type | USB Switch |
| Voltage - Load [Max] | 6 V |
| Voltage - Load [Min] | 2.5 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.95 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.81 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.62 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 0.95 | ||
| 10 | $ 0.85 | |||
| 25 | $ 0.81 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.62 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.43 | |||
| Tape & Reel (TR) | 3000 | $ 0.40 | ||
| 6000 | $ 0.38 | |||
| 15000 | $ 0.37 | |||
Description
General part information
RTQ9728 Series
Power Switch/Driver 1:1 P-Channel 2.5A 6-WDFN (2x2)
