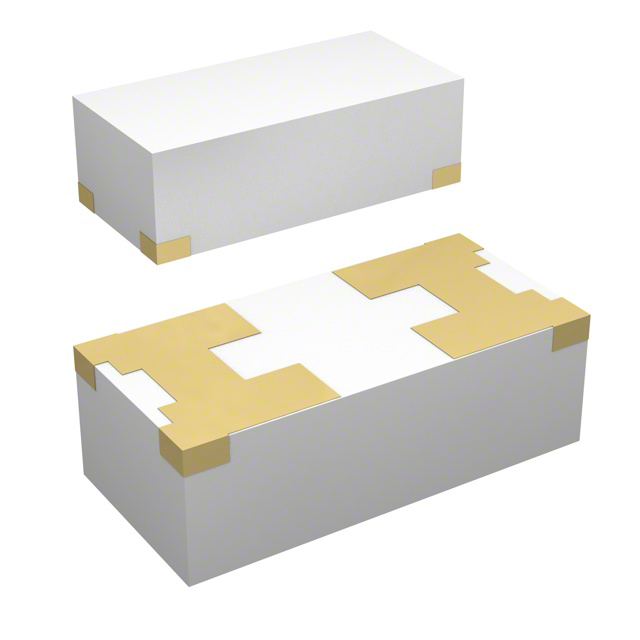

M310210
ObsoleteKyocera AVX
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M310210
ObsoleteKyocera AVX
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M310210 |
|---|---|
| Antenna Type | Chip |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | -1.3 dBi |
| Height (Max) [Max] | 1.08 mm |
| Height (Max) [Max] | 0.043 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 1.02 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M310210 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Chip Solder Surface Mount
Documents
Technical documentation and resources
