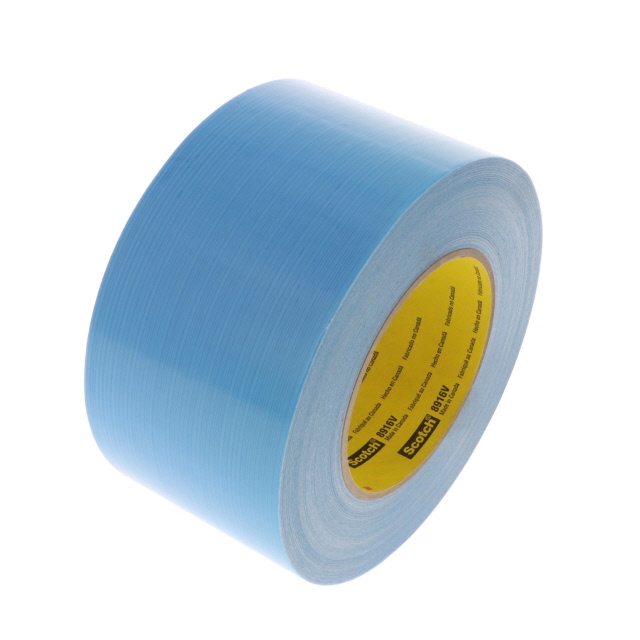

8916V-BLUE-72MMX5M

Active

3M (TC)

TAPE FILAMENT BLUE 2.83"X5.5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8916V-BLUE-72MMX5M

Active

3M (TC)

TAPE FILAMENT BLUE 2.83"X5.5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8916V-BLUE-72MMX5M

Backing, Carrier	Scotchpro™ Film
Color	Blue
Length	16.5 ft
Length	5 m
Length	5.5 yds
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F
Storage/Refrigeration Temperature [Max]	26 °C
Storage/Refrigeration Temperature [Min]	40 °F
Storage/Refrigeration Temperature [Min]	4 °C
Tape Type	Filament
Thickness	0.0067 "
Thickness	0.17 mm
Thickness	6.7 mils
Usage	Bonding
Width [y]	72 mm
Width [y]	2.83 "

8916 Series

Part	Tape Type	Color	Thickness	Thickness	Thickness	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Shelf Life	Backing, Carrier	Usage	Shelf Life Start	Length	Length	Length	Width [x]	Width [x]	Width [y]	Width [y]	Width
3M (TC) 8916V-CLEAR-24MMX55M	Filament	Clear	0.0067 "	0.17 mm	6.7 mils	80 °F	26 °C	40 °F	4 °C	18 Months	Scotchpro™ Film	Bonding	Date of Manufacture	60 yds	55 m	180 ft
3M (TC) 8916V-CLEAR-18MMX55M	Filament	Clear	0.0067 "	0.17 mm	6.7 mils	80 °F	26 °C	40 °F	4 °C	18 Months	Scotchpro™ Film	Bonding	Date of Manufacture	60 yds	55 m	180 ft	0.71 in	18 mm
3M (TC) 8916V-CLEAR-60MMX55M	Filament	Clear	0.0067 "	0.17 mm	6.7 mils	80 °F	26 °C	40 °F	4 °C	18 Months	Scotchpro™ Film	Bonding	Date of Manufacture	60 yds	55 m	180 ft			60 mm	2.36 "
3M (TC) 8916V-BLUE-18MMX55M	Filament	Blue	0.0067 "	0.17 mm	6.7 mils	80 °F	26 °C	40 °F	4 °C	18 Months	Scotchpro™ Film	Bonding	Date of Manufacture	60 yds	55 m	180 ft	0.71 in	18 mm
3M (TC) 8916 FILAMENT TAPE	Filament	Clear	0.006 in	0.152 mm	6 mils	80 °F	26 °C	40 °F	4 °C	18 Months	Scotchpro™ Film	General Purpose	Date of Manufacture	60 yds	55 m	180 ft	0.94 "				24 mm
3M (TC) 8916V-BLUE-72MMX5M	Filament	Blue	0.0067 "	0.17 mm	6.7 mils	80 °F	26 °C	40 °F	4 °C	18 Months	Scotchpro™ Film	Bonding	Date of Manufacture	5.5 yds	5 m	16.5 ft			72 mm	2.83 "
3M (TC) 8916V-BLUE-48MMX55M	Filament	Blue	0.0067 "	0.17 mm	6.7 mils	80 °F	26 °C	40 °F	4 °C	18 Months	Scotchpro™ Film	Bonding	Date of Manufacture	60 yds	55 m	180 ft			48 mm	1.89 in
3M (TC) 8916V-CLEAR-36MMX55M	Filament	Clear	0.0067 "	0.17 mm	6.7 mils	80 °F	26 °C	40 °F	4 °C	18 Months	Scotchpro™ Film	Bonding	Date of Manufacture	60 yds	55 m	180 ft	1.42 in	36 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1728	$ 54.50

Description

General part information

8916 Series

Filament Tape Pressure Sensitive Adhesive (PSA) Adhesive Blue 2.83" (72.00mm) X 16.5' (5.0m) 5.5 yds
