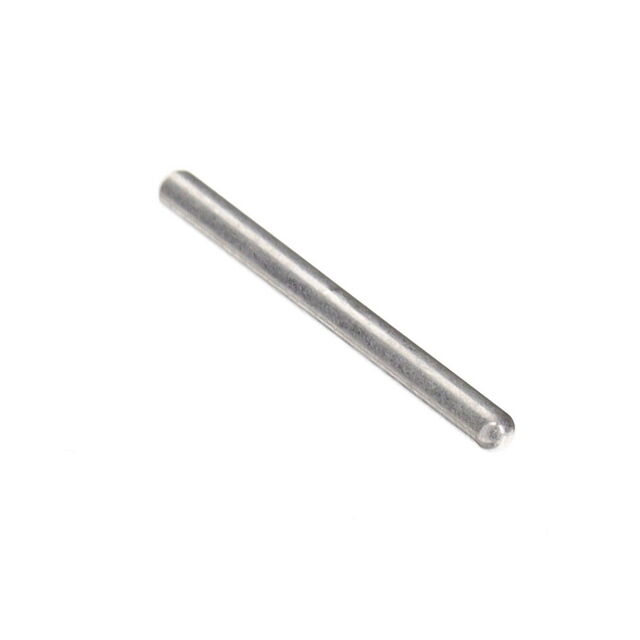

3340-1-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
3340-1-00-80-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3340-1-00-80-00-00-03-0 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.5 in |
| Length - Overall [x] | 12.7 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Pin Size - Below Flange [diameter] | 1.02 mm |
| Pin Size - Below Flange [diameter] | 0.04 in |
| Terminal Style | Smooth |
| Terminal Type | Single Post |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.77 | |
| 10 | $ 0.65 | |||
| 100 | $ 0.59 | |||
| 1000 | $ 0.43 | |||
| 5000 | $ 0.37 | |||
| 10000 | $ 0.35 | |||
Description
General part information
3340-1 Series
Single Post Terminal Connector Through Hole Tin 0.040" (1.02mm) Dia
Documents
Technical documentation and resources
No documents available
