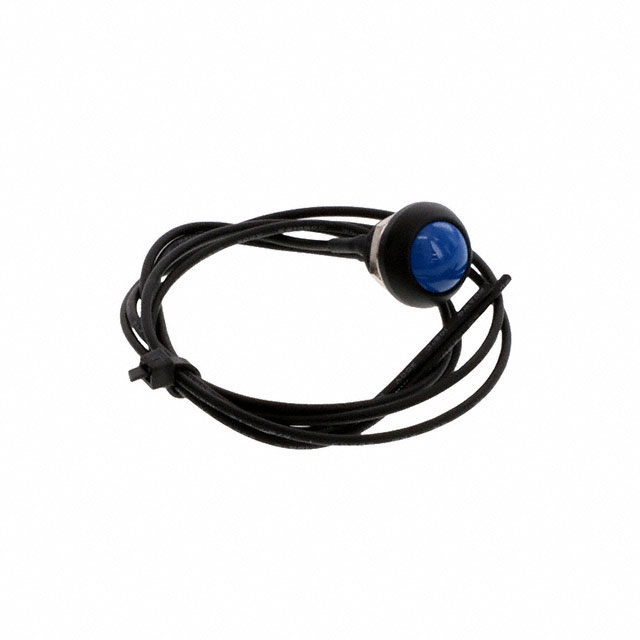

PB7B2RS2M1CAL00Y500

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NC 125MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

PB7B2RS2M1CAL00Y500

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NC 125MA 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PB7B2RS2M1CAL00Y500

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	125 mA, 200 mA
Electrical Life	500000 Cycles
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	13.6 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	50 VDC

ALCOSWITCH PB7 Series

Part	Circuit	Color - Actuator/Cap	Voltage Rating - DC	Switch Function	Actuator Marking	Actuator Type	Panel Cutout Dimensions [diameter]	Type	Electrical Life	Termination Style	Mechanical Life	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Voltage Rating - AC
TE Connectivity Raychem Cable Protection PB7B2FM7M1CAL00Y500	SPST-NC	Blue	50 VDC	On-Mom	No Marking	Button Round	13.6 mm	Standard	500000 Cycles	Wire Leads	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2RS3M1CAL00Y500	SPST-NC	Red	50 VDC	On-Mom	No Marking	Button Domed Round	13.6 mm	Standard	500000 Cycles	Wire Leads	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2HS2M1CAL00Y500	SPST-NC	Black	50 VDC	On-Mom	No Marking	Button Round	13.6 mm	Standard	500000 Cycles	Wire Leads	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2RS6M1CAL00	SPST-NC	Green	50 VDC	On-Mom	No Marking	Button Domed Round	13.6 mm	Standard	500000 Cycles	Solder Lug	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2FM5M1CAL00Y500	SPST-NC	Yellow	50 VDC	On-Mom	No Marking	Button Round	13.6 mm	Standard	500000 Cycles	Wire Leads	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2HS3M1CAL00Y500	SPST-NC	Red	50 VDC	On-Mom	No Marking	Button Round	13.6 mm	Standard	500000 Cycles	Wire Leads	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2FM6M1CAL00	SPST-NC	Green	50 VDC	On-Mom	No Marking	Button Round	13.6 mm	Standard	500000 Cycles	Solder Lug	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2RS3M1CAL00	SPST-NC	Red	50 VDC	On-Mom	No Marking	Button Domed Round	13.6 mm	Standard	500000 Cycles	Solder Lug	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2FM2M1CAL00Y500	SPST-NC	Black	50 VDC	On-Mom	No Marking	Button Round	13.6 mm	Standard	500000 Cycles	Wire Leads	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V
TE Connectivity Raychem Cable Protection PB7B2RS2M1CAL00Y500	SPST-NC	Black	50 VDC	On-Mom	No Marking	Button Domed Round	13.6 mm	Standard	500000 Cycles	Wire Leads	1000000 Cycles	IP68 - Dust Tight Waterproof	-30 ░C	85 °C	Panel Mount Front	125 mA 200 mA	125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.48
		25	$ 6.40
		100	$ 5.92
		1000	$ 4.91

Description

General part information

ALCOSWITCH PB7 Series

Pushbutton Switch SPST-NC Standard Panel Mount, Front
