2908307
ActivePhoenix Contact

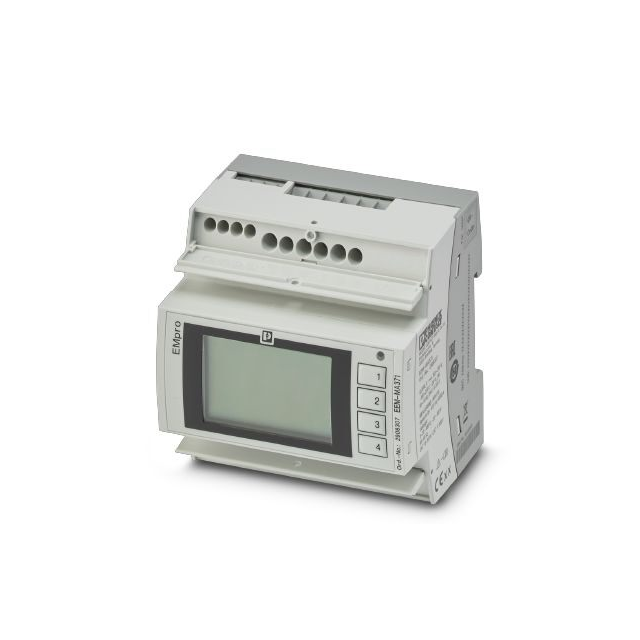

DIN-MOUNT ENERGY METER WITH DISP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2908307
ActivePhoenix Contact
DIN-MOUNT ENERGY METER WITH DISP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2908307 | 29083 Series |
|---|---|---|
| Display Type | LCD - Black Characters, Backlight | LCD - Black Characters, Backlight |
| Ingress Protection | - | IP54 - Dust Protected, Water Resistant |
| Measuring Range [Max] | 690 VAC, 5 A | 5 - 690 VAC |
| Measuring Range [Min] | 0 A, 35 VAC | 0 - 35 A |
| Measuring Type | Current (3-Phase), Wattage, Voltage | Current (3-Phase), Wattage, Voltage |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] [custom] | 55 °C | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | Energy Monitor | Energy Monitor |
| Voltage - Supply [Max] | 250 V, 230 VAC | 230 - 400 VAC |
| Voltage - Supply [Min] | 100 VAC, 150 VDC | 100 - 150 VAC |
29083 Series
ENERGY METER, 1, 2 & 3-PH, 400VAC, PANEL
| Part | Ingress Protection | Measuring Range [Min] | Measuring Range [Max] | Display Type | Termination Style | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Measuring Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2908302 | IP54 - Dust Protected, Water Resistant | 0 A, 35 VAC | 5 A, 690 VAC | LCD - Black Characters, Backlight | Screw Terminal | 55 °C | -10 °C | Energy Monitor | 100 VAC, 150 VDC | 250 V, 400 VAC | Current (3-Phase), Voltage, Wattage | |
Phoenix Contact 2908308 | 0 A, 35 VAC | 5 A, 690 VAC | Screw Terminal | 55 °C | -10 °C | Energy Monitor | 100 VAC, 150 VDC | 230 VAC, 250 V | Current (3-Phase), Voltage, Wattage | DIN Rail | ||
Phoenix Contact 2908307 | 0 A, 35 VAC | 5 A, 690 VAC | LCD - Black Characters, Backlight | Screw Terminal | 55 °C | -10 °C | Energy Monitor | 100 VAC, 150 VDC | 230 VAC, 250 V | Current (3-Phase), Voltage, Wattage | DIN Rail |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 527.11 | |
| 10 | $ 484.94 | |||
Description
General part information
29083 Series
Energy Monitor LCD - Black Characters, Backlight Display DIN Rail
