2908308

Active

Phoenix Contact

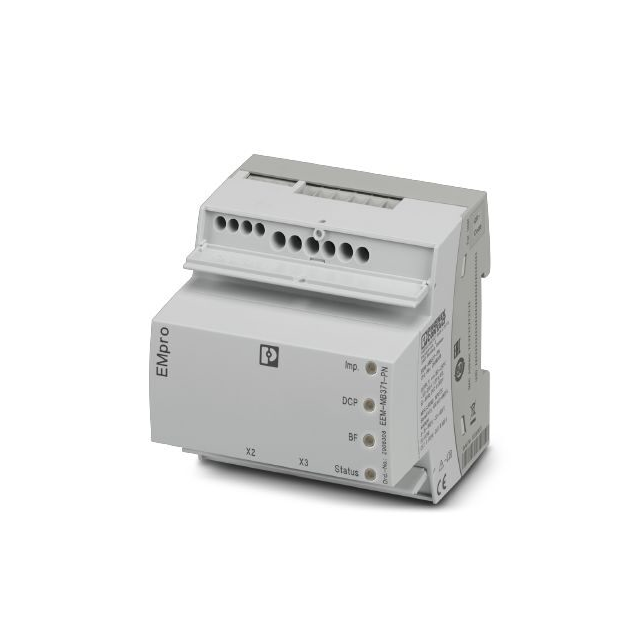

DIN-MOUNT ENERGY METER WITHOUT D

Search across all available documentation for this part.

Active

Phoenix Contact

DIN-MOUNT ENERGY METER WITHOUT D

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2908308	29083 Series

Display Type	-	LCD - Black Characters, Backlight
Ingress Protection	-	IP54 - Dust Protected, Water Resistant
Measuring Range [Max]	690 VAC, 5 A	5 - 690 VAC
Measuring Range [Min]	0 A, 35 VAC	0 - 35 A
Measuring Type	Current (3-Phase), Wattage, Voltage	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Termination Style	Screw Terminal	Screw Terminal
Type	Energy Monitor	Energy Monitor
Voltage - Supply [Max]	250 V, 230 VAC	230 - 400 VAC
Voltage - Supply [Min]	100 VAC, 150 VDC	100 - 150 VAC

ENERGY METER, 1, 2 & 3-PH, 400VAC, PANEL

Part	Ingress Protection	Measuring Range [Min]	Measuring Range [Max]	Display Type	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Type	Mounting Type
Phoenix Contact 2908302	IP54 - Dust Protected, Water Resistant	0 A, 35 VAC	5 A, 690 VAC	LCD - Black Characters, Backlight	Screw Terminal	55 °C	-10 °C	Energy Monitor	100 VAC, 150 VDC	250 V, 400 VAC	Current (3-Phase), Voltage, Wattage
Phoenix Contact 2908308		0 A, 35 VAC	5 A, 690 VAC		Screw Terminal	55 °C	-10 °C	Energy Monitor	100 VAC, 150 VDC	230 VAC, 250 V	Current (3-Phase), Voltage, Wattage	DIN Rail
Phoenix Contact 2908307		0 A, 35 VAC	5 A, 690 VAC	LCD - Black Characters, Backlight	Screw Terminal	55 °C	-10 °C	Energy Monitor	100 VAC, 150 VDC	230 VAC, 250 V	Current (3-Phase), Voltage, Wattage	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 741.90

General part information

Energy Monitor Display DIN Rail
