Switches

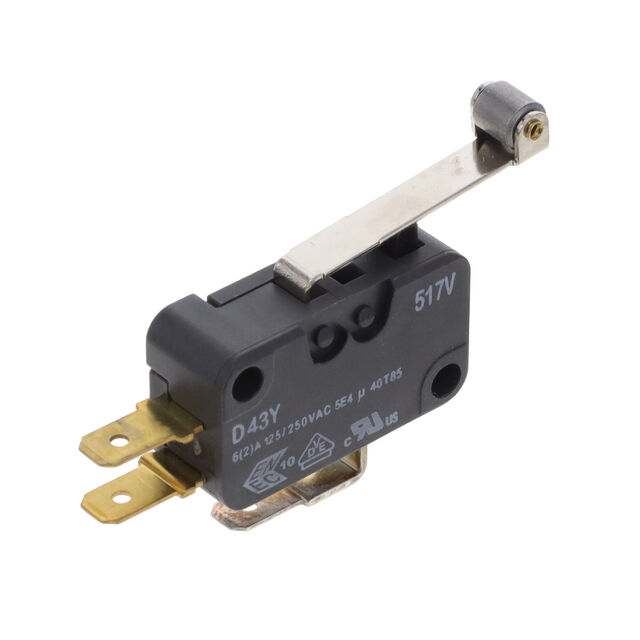

D433-R1RD

Active

SWITCH SNAP ACTION SPDT 6A 250V

Switches

Active

SWITCH SNAP ACTION SPDT 6A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Actuator Type	Quick Connect Size (0.187")	Termination Style	Current Rating	Electrical Life (Cycles)	Pretravel (Length)	Release Force	Mounting Type	Circuit	Differential Travel (Linear)	Operating Temperature (Min)	Operating Temperature (Max)	Overtravel (Linear)	Voltage Rating - AC	Features	Operating Position (Length)	Operating Force
ZF Electronics D433-R1RA-G2	On-Mom	Lever Roller	0.187 in	Quick Connect	6 A	50000	0.047 in	40 gf	Chassis Mount	SPDT	0.016 in	-40 °C	85 °C	0.039 in	250 V	Explosion Proof	0.806 in	194 gf
ZF Electronics D433-R1LD-G2	On-Mom	Lever Straight	0.187 in	Quick Connect	6 A	50000	0.125 in	20 gf	Chassis Mount	SPDT	0.031 in	-40 °C	85 °C	0.09 in	250 V	Explosion Proof	0.6 in	88 gf
ZF Electronics D433-R1AA-G2	On-Mom	Round (Pin Plunger)	0.187 in	Quick Connect	6 A	50000	0.047 in	46 gf	Chassis Mount	SPDT	0.012 in	-40 °C	85 °C	0.051 in	250 V	Explosion Proof	0.579 in	173 gf
ZF Electronics D433-R1TD	On-Mom	Lever Roller	0.187 in	Quick Connect	6 A	50000	0.2 in		Chassis Mount	SPDT	0.05 in	-40 °C	85 °C	0.141 in	250 V	Explosion Proof
ZF Electronics D433-R1RD	On-Mom	Lever Roller	0.187 in	Quick Connect	6 A	50000	0.125 in	20 gf	Chassis Mount	SPDT	0.03 in	-40 °C	85 °C	0.087 in	250 V	Explosion Proof	0.806 in	88 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

3D models and CAD resources for this part

General part information

Switch SPDT Chassis Mount
