1658623-9
ActiveTE Connectivity Raychem Cable Protection

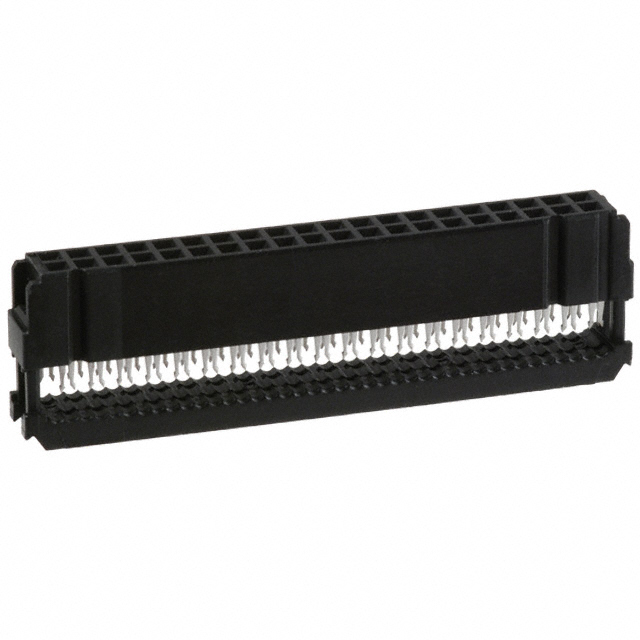

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 40 CONTACTS, CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
1658623-9
ActiveTE Connectivity Raychem Cable Protection
IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 40 CONTACTS, CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1658623-9 |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold, Gold-Palladium |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Type | Forked |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.25 | |
| 10 | $ 2.76 | |||
| 45 | $ 2.49 | |||
| 90 | $ 2.37 | |||
| 135 | $ 2.30 | |||
| 270 | $ 2.19 | |||
| 540 | $ 2.09 | |||
| 1035 | $ 2.05 | |||
Description
General part information
AMP-LATCH NOVO Series
Headers & Wire Housings .1CL IDC REC 2X15P MIL 30AU
