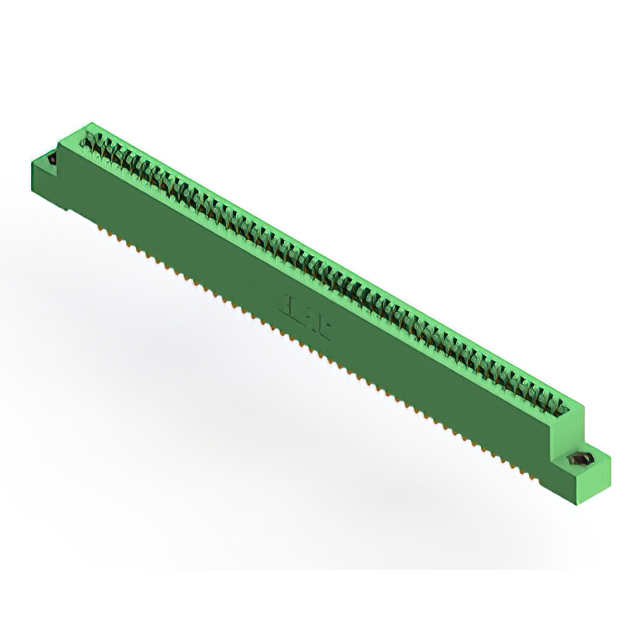

842-049-500-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 49POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-049-500-108
ActiveEDAC Inc.
CONN EDGE SINGLE FML 49POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-049-500-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 49 |
| Number of Positions/Bay/Row [custom] | 49 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
842-049 Series
| Part | Number of Positions | Number of Rows | Flange Feature | Card Type | Pitch [x] | Pitch [x] | Read Out | Number of Positions/Bay/Row [custom] | Gender | Contact Material | Termination Rows | Contact Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Contact Finish Thickness | Contact Finish Thickness | Termination | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 49 | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Solder | ||
EDAC Inc. | 49 | 1 | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Solder | ||
EDAC Inc. | 49 | 1 | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Wire Wrap | ||
EDAC Inc. | 49 | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Solder Eyelet(s) | ||
EDAC Inc. | 49 | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole Right Angle | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Solder | ||
EDAC Inc. | 49 | 1 | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Wire Wrap | ||
EDAC Inc. | 49 | 1 | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Wire Wrap | |||
EDAC Inc. | 49 | 1 | Floating Bobbin Flush Mount | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Wire Wrap | 0.116 in | 2.95 mm |
EDAC Inc. | 49 | 1 | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Solder | |||
EDAC Inc. | 49 | 1 | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 2.54 mm | 0.1 in | Single | 49 | Female | Copper Alloy | 1 | Cantilever | Gold | 125 °C | -40 °C | Through Hole Right Angle | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | Solder | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
842-049 Series
49 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
