BC-202-195-RD

Active

Big Cat Cables

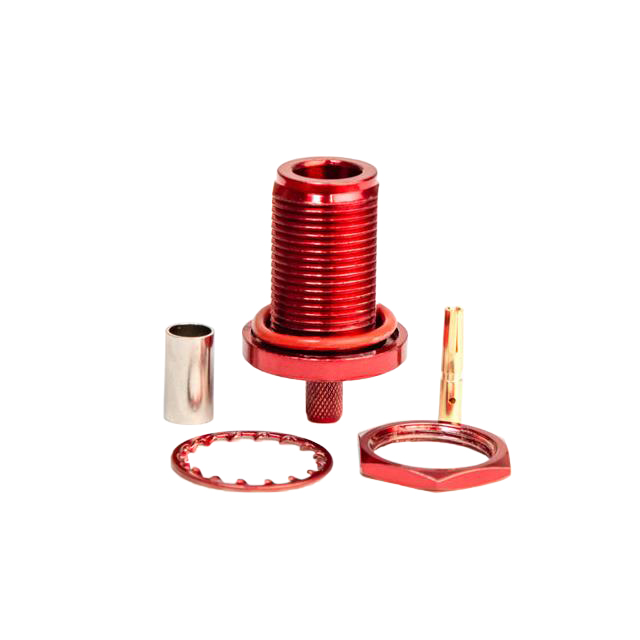

N TYPE FEMALE CRIMP CONNECTOR RE

Search across all available documentation for this part.

Active

Big Cat Cables

N TYPE FEMALE CRIMP CONNECTOR RE

Technical Specifications

Parameters and characteristics for this part

Specification	BC-202-195-RD

Body Material	Brass
Cable Group	LMR-195
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Red
Impedance	50 Ohms
Ingress Protection	Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

N TYPE FEMALE CRIMP CONNECTOR RE

Part	Cable Group	Dielectric Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Housing Color	Mating Cycles	Voltage Rating	Frequency - Max [Max]	Connector Style	Contact Termination	Shield Termination	Ingress Protection	Mounting Feature	Connector Type	Impedance	Center Contact Material	Body Material
Big Cat Cables BC-202-195-RD	LMR-195	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	1	Red	500	1000 VDC	6000 MHz	N Type	Crimp	Crimp	Waterproof	Bulkhead - Front Side Nut	Female Socket, Jack	50 Ohms	Brass	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
