301A10029X

Active

Amphenol CONEC

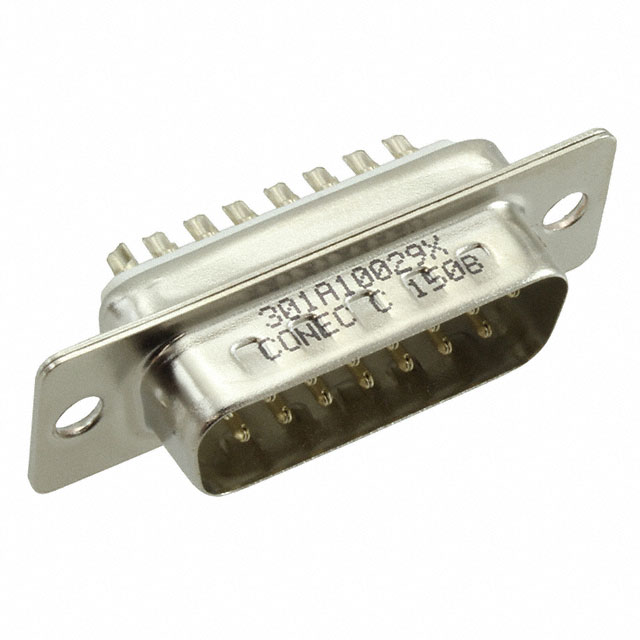

D-SUB CONN, PLUG, DA, 15POS, SOLDER CUP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

301A10029X

Active

Amphenol CONEC

D-SUB CONN, PLUG, DA, 15POS, SOLDER CUP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	301A10029X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Voltage Rating	250 VDC

301A100 Series

Part	Features	Current Rating (Amps)	Flange Feature	Connector Type	Contact Finish Thickness	Material Flammability Rating	Connector Style	Contact Type	Dielectric Material	Shell Size, Connector Layout	Color	Number of Positions	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Contact Finish	Contact Material	Number of Rows	Wire Gauge	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Termination	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 301A10079X	Grounding Indents	3 A	Housing/Shell (Unthreaded)	Male Pins Plug	Flash	UL94 V-0	D-Sub	Signal	Thermoplastic	5	Black	50	Stamped	105 ░C	-55 °C	250 VDC	Free Hanging (In-Line)	Gold	Copper Alloy	3
Amphenol CONEC 301A10099X	Grounding Indents Strain Relief		Housing/Shell (Unthreaded)	Male Pins Plug		UL94 V-0	D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled	2	Black	15	Stamped	85 °C	-25 °C	125 VDC		Gold	Brass	2	Stranded	28 AWG	26 AWG	8 çin	0.203 çm	IDC Ribbon Cable
Amphenol CONEC 301A10019X	Grounding Indents	3 A	Housing/Shell (Unthreaded)	Male Pins Plug	Flash	UL94 V-0	D-Sub	Signal	Polybutylene Terephthalate (PBT) Glass Filled		Black	9	Stamped	105 ░C	-55 °C	250 VAC	Free Hanging (In-Line)	Gold	Copper Alloy	2							DE E	1
Amphenol CONEC 301A10059X	Grounding Indents	3 A	Housing/Shell (Unthreaded)	Male Pins Plug	Flash	UL94 V-0	D-Sub	Signal	Thermoplastic		Black		Stamped	105 ░C	-55 °C	250 VDC	Free Hanging (In-Line)	Gold	Copper Alloy	2							B DB	3
Amphenol CONEC 301A10029X	Grounding Indents	3 A	Housing/Shell (Unthreaded)	Male Pins Plug	Flash	UL94 V-0	D-Sub	Signal	Thermoplastic	2	Black	15	Stamped	105 ░C	-55 °C	250 VDC	Free Hanging (In-Line)	Gold	Copper Alloy	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 1.67
		10	$ 1.44
		100	$ 1.26
		250	$ 1.12
		500	$ 1.01
		1000	$ 0.91
		2500	$ 0.84
		5000	$ 0.77

Description

General part information

301A100 Series

15 Position D-Sub Plug, Male Pins Connector
