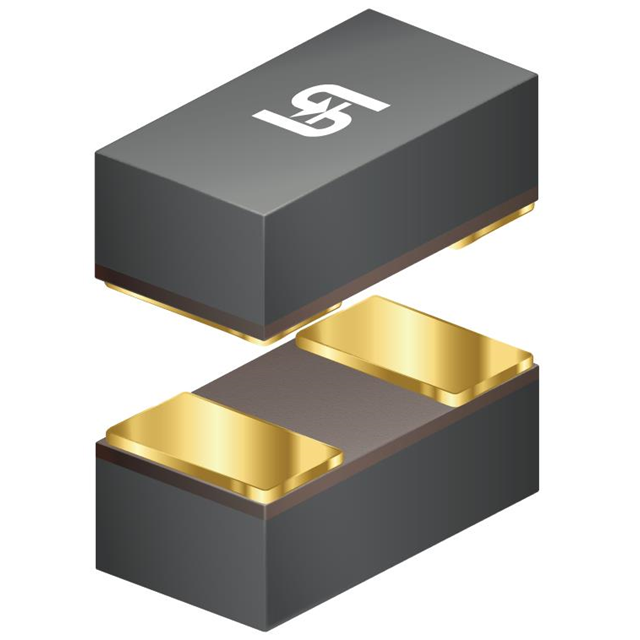

TSS40L RWG

Obsolete

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 40V 200MA 1005

Search across all available documentation for this part.

Obsolete

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 40V 200MA 1005

Technical Specifications

Parameters and characteristics for this part

Specification	TSS40L RWG

Capacitance @ Vr, F	5 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	200 nA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	1005 (2512 Metric)
Reverse Recovery Time (trr)	5 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	1005
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Capacitance @ Vr, F	Package / Case	Package / Case	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Technology	Supplier Device Package
Taiwan Semiconductor Corporation TSS40U RGG	5 ns	125 °C	-65 C	Any Speed	200 mA	5 pF	0603 Metric	0201	200 mA	200 nA	1 V	40 V	Surface Mount	Schottky
Taiwan Semiconductor Corporation TSS40L RWG	5 ns	125 °C	-65 C	Any Speed	200 mA	5 pF		1005 (2512 Metric)	200 mA	200 nA	1 V	40 V	Surface Mount	Schottky	1005

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 40 V 200mA Surface Mount 1005
