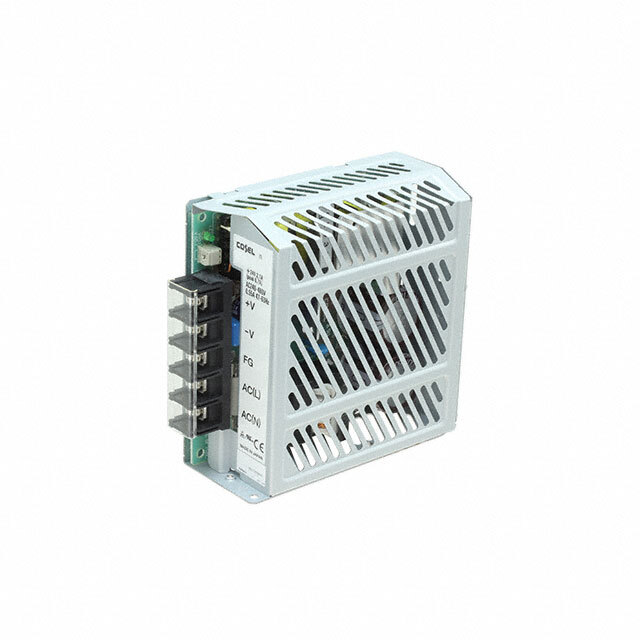

FCA75F-24

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 24V 75W

Search across all available documentation for this part.

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER 24V 75W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Input Type	Approval Agency	DC Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	DC Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Type	Features
Cosel USA, Inc. FCA75F-24-CN1	ITE (Commercial)	AC or DC	CE cURus TUV	265 V	24 V	3000 V	-10 °C	60 °C	1	746 V	5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm	75 W	187 VAC	528 VAC
Cosel USA, Inc. FCA75F-24-N1	ITE (Commercial)	AC or DC	CE cURus TUV	265 V	24 V	3000 V	-10 °C	60 °C	1	746 V	5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm	75 W	187 VAC	528 VAC
Cosel USA, Inc. FCA75F-24	ITE (Commercial)		CE cURus TUV		24 V	3000 V	-10 °C	60 °C	1		5.91 "	125 mm	5 "	4.92 in	127 mm	150 mm	75 W			3.1 A	187 VAC 265 VDC	528 VAC 746 VDC	Chassis Mount	Enclosed	DC Input Capable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 24V 187 ~ 528 VAC, 265 ~ 746 VDC Input
