STEVAL-LLL014V1

Active

STMicroelectronics

AUTOMOTIVE LED DRIVER 4-CHANNEL EVALUATION KIT BASED ON ALED7709

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUM3180 DB5016 +3

STEVAL-LLL014V1

Active

STMicroelectronics

AUTOMOTIVE LED DRIVER 4-CHANNEL EVALUATION KIT BASED ON ALED7709

Deep-Dive with AI

DocumentsUM3180 DB5016 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STEVAL-LLL014V1

Current - Output / Channel	150 mA
Features	Dimmable
Outputs and Type	4
Outputs and Type	Non-Isolated Outputs
Supplied Contents	Board(s)
Utilized IC / Part	ALED7709
Voltage - Input [Max]	42 V
Voltage - Input [Min]	4.5 V
Voltage - Output	40 V

STEVAL-LLL014V1 Series

Automotive LED driver 4-channel evaluation kit based on ALED7709

Part	Supplier Device Package	Internal Switch(s)	Qualification	Current - Output / Channel	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Package / Case	Voltage - Supply (Min) [Min]	Topology	Type	Number of Outputs	Dimming	Voltage - Supply (Max) [Max]	Frequency [Min]	Frequency [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Voltage - Output	Features	Utilized IC / Part	Outputs and Type	Outputs and Type
STMicroelectronics ALED7709ATR	24-QFN (5x5)		AEC-Q100	200 mA	Surface Mount	150 °C	-40 °C	Automotive	24-VQFN Exposed Pad	4.5 V	SEPIC Step-Up (Boost)	DC DC Controller	4	Analog PWM	42 V	250 kHz	2.2 MHz
STMicroelectronics STEVAL-LLL014V1				150 mA														42 V	4.5 V	Board(s)	40 V	Dimmable	ALED7709	4	Non-Isolated Outputs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 106.25
Newark	Each	1	$ 110.75

Description

General part information

STEVAL-LLL014V1 Series

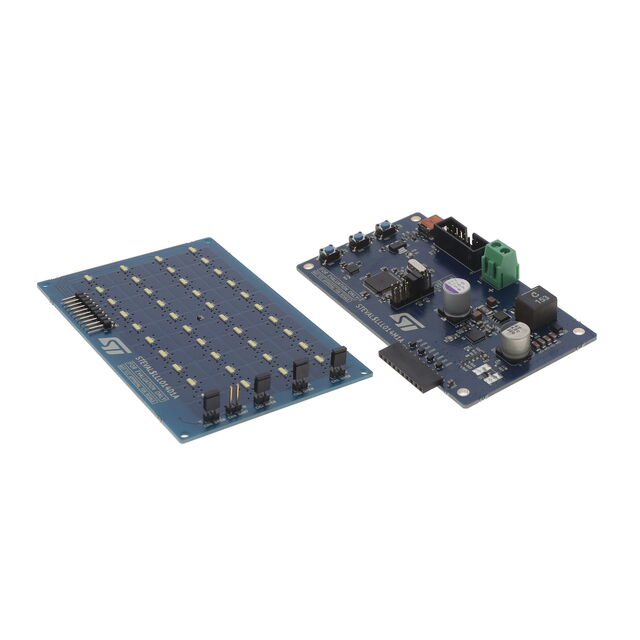

The STEVAL-LLL014V1 is a four LEDs strings evaluation kit based on the ALED7709 LED driver configured in boost.

The ALED7709 is an automotive LED driver (AEC-Q100 Grade1 qualified), it includes a DC/DC controller usable as boost or SEPIC, and four low-side constant-current sinks.

The integration of the boost controller with the LED sinks, gives the possibility of adapting the boost voltage for the different LED conditions, minimizing the power dissipation in the ALED7709 and as consequence increasing the overall efficiency.
