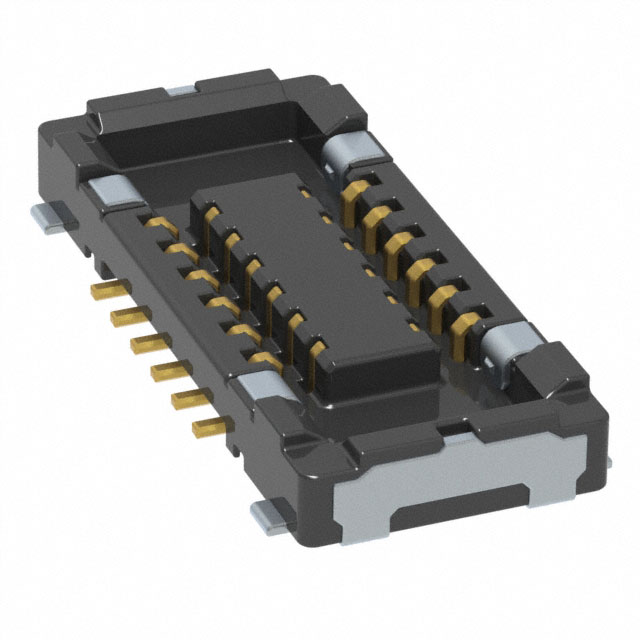

AXG7120J7

Obsolete

Panasonic Electric Works

CONN SOCKET 12POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 12POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXG7120J7

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.023 in
Height Above Board	0.59 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	14
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Number of Positions	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Number of Rows	Mated Stacking Heights	Features	Mounting Type	Contact Finish	Connector Type
Panasonic Electric Works AXG712047	12	0.023 in	0.59 mm	0.35 mm	0.014 in	2	0.6 mm	Solder Retention	Surface Mount	Gold	Socket Center Strip Contacts
Panasonic Electric Works AXG712047A	12	0.023 in	0.59 mm	0.35 mm	0.014 in	2	0.6 mm	Solder Retention	Surface Mount	Gold	Socket Center Strip Contacts
Panasonic Electric Works AXG7120J7	14	0.023 in	0.59 mm	0.35 mm	0.014 in	2	0.6 mm	Solder Retention	Surface Mount	Gold	Socket Center Strip Contacts
Panasonic Electric Works AXG7120J7A	14	0.023 in	0.59 mm	0.35 mm	0.014 in	2	0.6 mm	Solder Retention	Surface Mount	Gold	Socket Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

14 (12 + 2 Power) Position Connector Socket, Center Strip Contacts Surface Mount Gold
