SF-QSFPPEXPAS-003

Active

AMPHENOL CABLES ON DEMAND

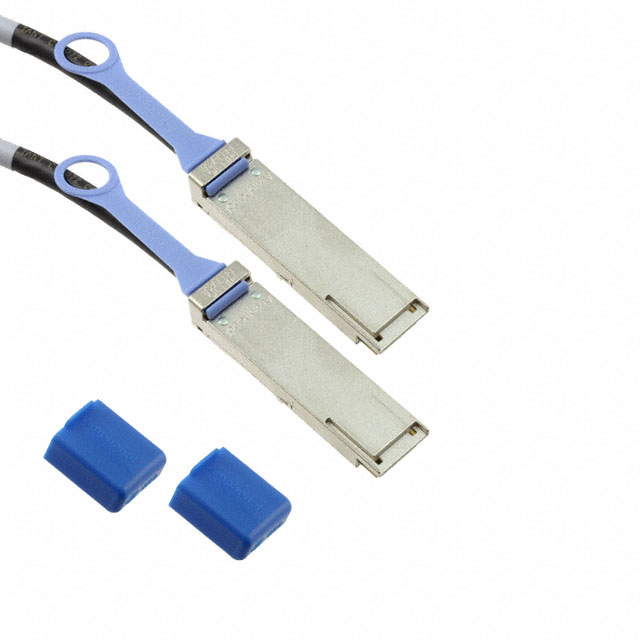

NETWORK CABLE, 40 GBE-CR4, QSFP+ 38 POSITION PLUG, QSFP+ 38 POSITION PLUG, 3 M, 9.8 FT

Search across all available documentation for this part.

Active

AMPHENOL CABLES ON DEMAND

NETWORK CABLE, 40 GBE-CR4, QSFP+ 38 POSITION PLUG, QSFP+ 38 POSITION PLUG, 3 M, 9.8 FT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF-QSFPPEXPAS-003	SF-QSFP Series

Accessory Type	-	Loopback, Adapter
Cable Connectors	QSFP+	QSFP+, SFP+ (4)
Cable Type	Round	Round
Color	Black	Black
Connector Type	Plug to Plug	Plug to Plug
Connector Type	-	4
Fastening Type	Push-Pull, Latch Lock	Push-Pull, Latch Lock
Features	Pull Tab	Pull Tab
For Use With/Related Products	-	QSFP Connectors
Frequency - Max [Max]	40 Gbps	10 - 40 Gbps
Gender	Male to Male	Male to Male
Length [x]	9.84 ft	3.28 - 9.84 ft
Length [x]	3 m	1 - 3 m
Number of Positions	38	38
Number of Positions	-	20 (4), 38
Shielding	Shielded	Shielded
Usage	Network	Network
Wire Gauge	30 AWG	30 AWG

I/O CONNECTOR, PLUG, QSFP+, CABLE MOUNT

Part	Accessory Type	For Use With/Related Products	Cable Connectors	Length [x]	Length [x]	Features	Wire Gauge	Shielding	Color	Number of Positions	Cable Type	Connector Type	Frequency - Max [Max]	Gender	Fastening Type	Usage	Connector Type	Number of Positions
AMPHENOL CABLES ON DEMAND SF-QSFPLOOPBK-003	Adapter, Loopback	QSFP Connectors
AMPHENOL CABLES ON DEMAND SF-QSFPLOOPBK-001	Adapter, Loopback	QSFP Connectors
AMPHENOL CABLES ON DEMAND SF-QSFPPEXPAS-003			QSFP+	9.84 ft	3 m	Pull Tab	30 AWG	Shielded	Black	38	Round	Plug to Plug	40 Gbps	Male to Male	Latch Lock, Push-Pull	Network
AMPHENOL CABLES ON DEMAND SF-QSFP4SFPPS-001			QSFP+, SFP+ (4)	3.28 ft	1 m	Pull Tab	30 AWG	Shielded	Black		Round	Plug to Plug	10 Gbps, 40 Gbps	Male to Male	Latch Lock, Push-Pull	Network	4	20 (4), 38
AMPHENOL CABLES ON DEMAND SF-QSFPLOOPBK-002	Adapter, Loopback	QSFP Connectors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 102.91
Newark	Each	10	$ 109.11
		25	$ 104.27

General part information

38 Position QSFP+ Plug to Plug 9.84' (3.00m) Black Shielded
