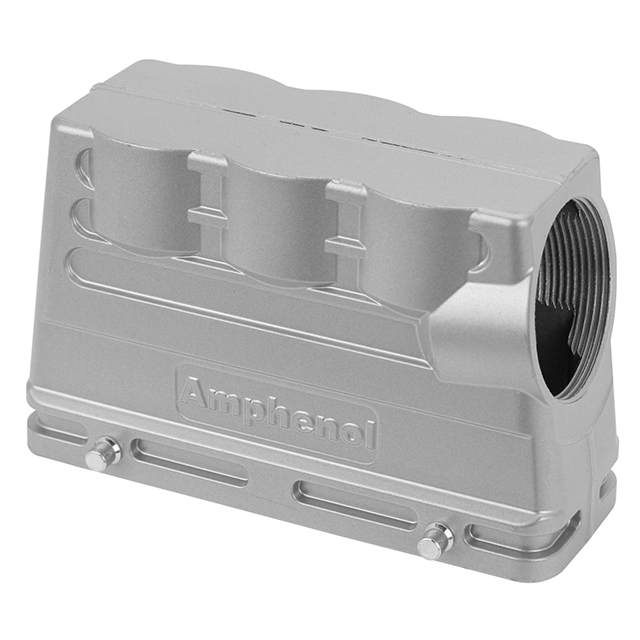

C14611R0245501

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 M25

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C14611R0245501

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 M25

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C14611R0245501

Connector Type	Hood
Housing Finish	EMC Coating
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.441 "
Size / Dimension [z]	62 mm
Style	Side Entry
Thread Size	M25

C14611R024 Series

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Style	Connector Type	Size	Housing Color	Lock Location	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Size	Housing Material
Amphenol Tuchel Industrial C14611R0245008	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Side Entry	Hood	E24	Gray	Locking Clip (2) on Base Bottom	EMC Coating	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	M32	Aluminum Die Cast
Amphenol Tuchel Industrial C14611R0246501	120 mm	4.724 "	43 mm	62 mm	1.693 in	2.441 "	Top Entry	Hood	E24		Locking Clip (2) on Base Bottom	EMC Coating	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	M25	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14611R0246508	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Top Entry	Hood	E24	Gray	Locking Clip (2) on Base Bottom	EMC Coating	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	M25	Aluminum Die Cast
Amphenol Tuchel Industrial C14611R0246001	120 mm	4.724 "	43 mm	62 mm	1.693 in	2.441 "	Top Entry	Hood	E24		Locking Clip (2) on Base Bottom	EMC Coating	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	M32	Aluminum Alloy Die Cast
Amphenol Tuchel Industrial C14611R0246008	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Top Entry	Hood	E24	Gray	Locking Clip (2) on Base Bottom	EMC Coating	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	M32	Aluminum Die Cast
Amphenol Tuchel Industrial C14611R0246018	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Top Entry	Hood	E24	Gray	Locking Clip (2) on Base Bottom	EMC Coating	125 °C	-40 °C	IP65 - Dust Tight Water Resistant		Aluminum Die Cast
Amphenol Tuchel Industrial C14611R0245501	120 mm	4.724 "	43 mm	62 mm	1.693 in	2.441 "	Side Entry	Hood	E24		Locking Clip (2) on Base Bottom	EMC Coating	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	M25	Aluminum Alloy Die Cast

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 18.70

Description

General part information

C14611R024 Series

Hood Connector Side Entry M25 E24 IP65 - Dust Tight, Water Resistant
