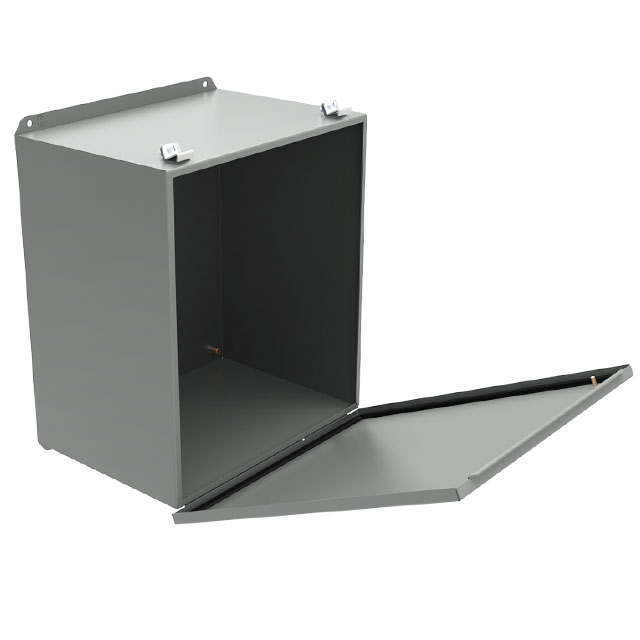

HJ12105HLP

Active

Hammond Manufacturing

BOX STEEL GRAY 12"L X 10"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL GRAY 12"L X 10"W

Technical Specifications

Parameters and characteristics for this part

Specification	HJ12105HLP

Area (L x W)	120 in²
Area (L x W)	774 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Stainless Steel Hinges, Mounting Flange
Height [z]	127 mm
Height [z]	5 in
Material	Metal, Steel
Ratings	NEMA 3R, IP66, NEMA 12, UL-508, NEMA 4, NEMA 13
Size / Dimension	254 mm, 304.8 mm
Size / Dimension [x]	12 in
Size / Dimension [y]	10 in
Thickness	14 Gauge
Weight	10 lbs
Weight	4.5 kg

Part	Ratings	Thickness	Color	Design	Height [z]	Height [z]	Weight	Weight	Features	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Container Type	Material	Area (L x W)	Area (L x W)
Hammond Manufacturing HJ12105HLP	IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 UL-508	14 Gauge	Gray	Hinged Door Lid	127 mm	5 in	10 lbs	4.5 kg	Mounting Flange Stainless Steel Hinges	254 mm 304.8 mm	12 in	10 in	Box	Metal Steel	120 in²	774 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Steel Gray Hinged Door, Lid 12.000" L x 10.000" W (304.80mm x 254.00mm) X 5.000" (127.00mm)
