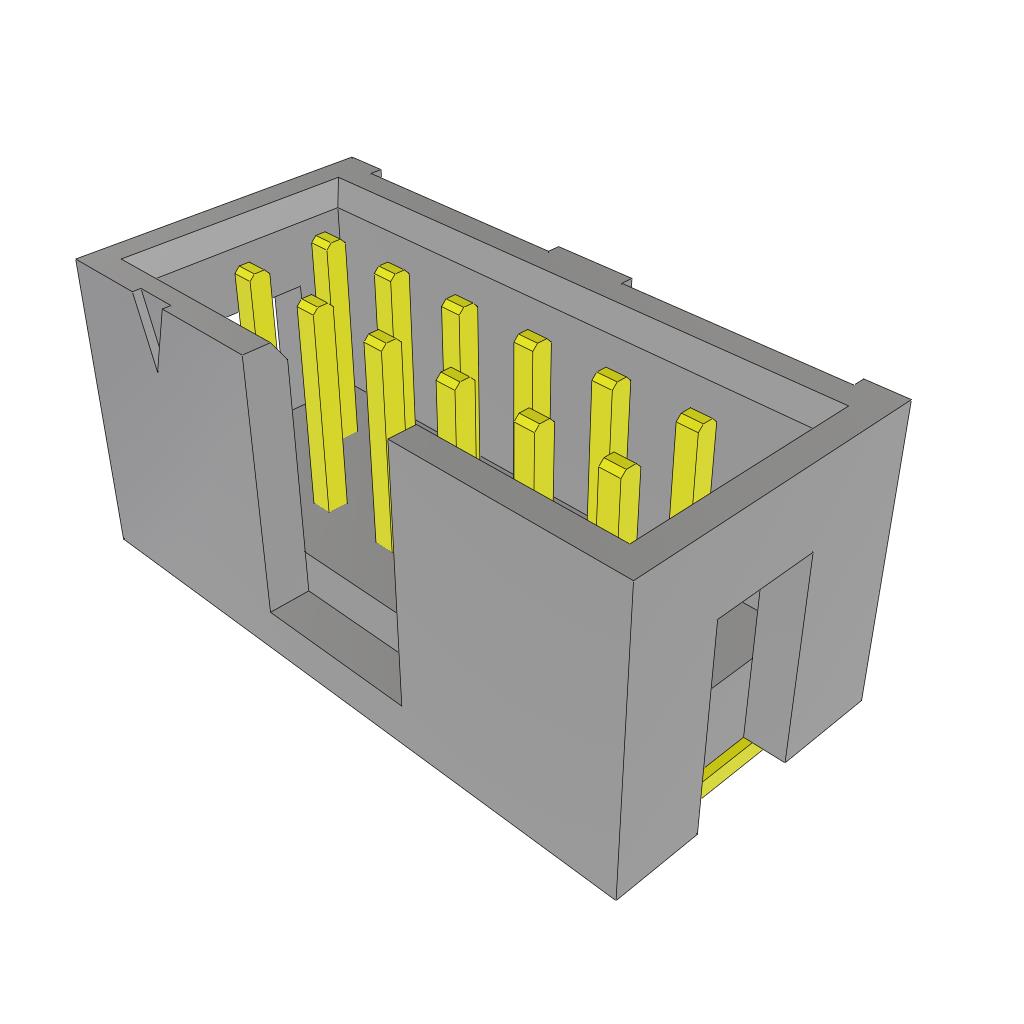

HTSS-106-04-G-D-RA

Active

Samtec Inc.

.100" HIGH-TEMP SHROUDED TERMINA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HTSS-106-04-G-D-RA

Active

Samtec Inc.

.100" HIGH-TEMP SHROUDED TERMINA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTSS-106-04-G-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Natural
Insulation Height	0.365 in
Insulation Height	9.27 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

HTSS-106 Series

Part	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Material	Contact Finish - Post	Mounting Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Material Flammability Rating	Insulation Material	Number of Rows	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Type	Insulation Height	Insulation Height	Style	Features	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Shape	Number of Positions Loaded	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Number of Positions Loaded
Samtec Inc. HTSS-106-04-G-D-RA	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Gold	Through Hole Right Angle	Solder	2.54 mm	0.1 in	-55 °C	125 °C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12	10 çin	0.25 çm	6.35 mm	0.25 in	Male Pin	0.365 in	9.27 mm	Board to Board Cable	Keying Slot	0.13 in	3.3 mm	Shrouded - 4 Wall	Natural	3 µin	0.076 µm	Gold	Square	All
Samtec Inc. HTSS-106-01-L-DV	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Tin	Surface Mount	Solder	2.54 mm	0.1 in	-55 °C	125 °C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12	10 çin	0.25 çm	6.35 mm	0.25 in	Male Pin			Board to Board Cable	Keying Slot			Shrouded - 4 Wall	Natural			Gold	Square	All	0.35 in	8.89 mm
Samtec Inc. HTSS-106-02-T-D	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Tin	Through Hole	Solder	2.54 mm	0.1 in	-55 °C	105 ░C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12			6.35 mm	0.25 in	Male Pin			Board to Board Cable	Keying Slot			Shrouded - 4 Wall	Natural				Square	All	0.35 in	8.89 mm	0.165 in	4.19 mm	13.46 mm	0.53 in
Samtec Inc. HTSS-106-02-G-D	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Gold	Through Hole	Solder	2.54 mm	0.1 in	-55 °C	125 °C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12	10 çin	0.25 çm	6.35 mm	0.25 in	Male Pin			Board to Board Cable	Keying Slot			Shrouded - 4 Wall	Natural	3 µin	0.076 µm	Gold	Square	All	0.35 in	8.89 mm	0.165 in	4.19 mm	13.46 mm	0.53 in
Samtec Inc. HTSS-106-01-S-DV-A-P	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Tin	Surface Mount	Solder	2.54 mm	0.1 in	-55 °C	125 °C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12	30 Áin	0.76 Ám	6.35 mm	0.25 in	Male Pin			Board to Board Cable	Board Guide Keying Slot Pick and Place			Shrouded - 4 Wall	Natural			Gold	Square	All	0.35 in	8.89 mm
Samtec Inc. HTSS-106-01-S-DV-A	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Tin	Surface Mount	Solder	2.54 mm	0.1 in	-55 °C	125 °C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12	30 Áin	0.76 Ám	6.35 mm	0.25 in	Male Pin			Board to Board Cable	Board Guide Keying Slot			Shrouded - 4 Wall	Natural			Gold	Square	All	0.35 in	8.89 mm
Samtec Inc. HTSS-106-05-G-D-RA	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Gold	Through Hole Right Angle	Solder	2.54 mm	0.1 in	-55 °C	125 °C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12	10 çin	0.25 çm	6.35 mm	0.25 in	Male Pin	0.365 in	9.27 mm	Board to Board Cable	Keying Slot	0.23 in	5.84 mm	Shrouded - 4 Wall	Natural	3 µin	0.076 µm	Gold	Square	All
Samtec Inc. HTSS-106-01-T-DV	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Tin	Surface Mount	Solder	2.54 mm	0.1 in	-55 °C	105 ░C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12			6.35 mm	0.25 in	Male Pin			Board to Board Cable	Keying Slot			Shrouded - 4 Wall	Natural				Square	All	0.35 in	8.89 mm
Samtec Inc. HTSS-106-01-T-DV-P-TR	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Tin	Surface Mount	Solder	2.54 mm	0.1 in	-55 °C	105 ░C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12			6.35 mm	0.25 in	Male Pin			Board to Board Cable	Keying Slot Pick and Place			Shrouded - 4 Wall	Natural				Square	All	0.35 in	8.89 mm
Samtec Inc. HTSS-106-01-G-D-01	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Gold	Through Hole	Solder	2.54 mm	0.1 in	-55 °C	125 °C	Header	UL94 V-0	Liquid Crystal Polymer (LCP)	2	12	10 çin	0.25 çm	6.35 mm	0.25 in	Male Pin			Board to Board Cable	Keying Slot	0.115 in	2.92 mm	Shrouded - 4 Wall	Natural	3 µin	0.076 µm	Gold	Square		0.35 in	8.89 mm			12.19 mm	0.48 in	11

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 4.19

Description

General part information

HTSS-106 Series

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
