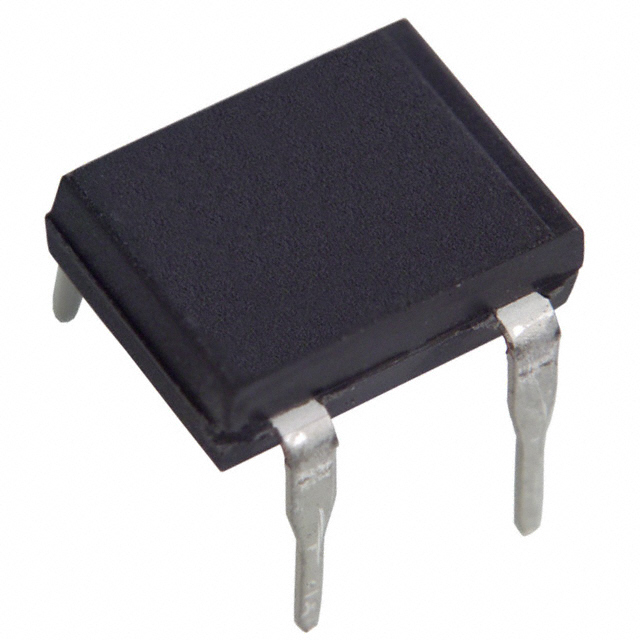

DF01M

Active

Diodes Inc

RECTIFIER BRIDGE DIODE SINGLE 100V 1A 4-PIN CASE DFM TUBE

Search across all available documentation for this part.

Active

Diodes Inc

RECTIFIER BRIDGE DIODE SINGLE 100V 1A 4-PIN CASE DFM TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	DF01M

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	4-EDIP (0.300", 7.62mm)
Supplier Device Package	DFM
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	100 V

bridge rectifier

Part	Diode Type	Package / Case	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature [Max]	Operating Temperature [Min]	Current - Average Rectified (Io)
Diodes Inc DF01S-T	Single Phase	4-SMD Gull Wing	Surface Mount	Standard	1.1 V	100 V	DF-S	10 µA	150 °C	-65 °C	1 A
Diodes Inc DF01S	Single Phase	4-SMD Gull Wing	Surface Mount	Standard	1.1 V	100 V	DF-S	10 µA	150 °C	-65 °C	1 A
Diodes Inc DF01M	Single Phase	4-EDIP (0.300" 7.62mm)	Through Hole	Standard	1.1 V	100 V	DFM	10 µA	150 °C	-65 °C	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

bridge rectifier
