TP-VRHP-4856-250

Active

Tycon Systems Inc.

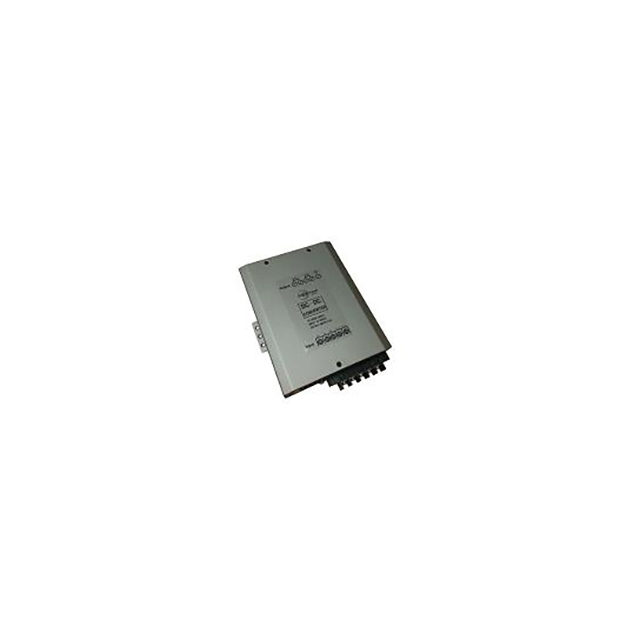

DC/DC CONVERTER 56V 250W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TP-VRHP-4856-250

Active

Tycon Systems Inc.

DC/DC CONVERTER 56V 250W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 196.82

Description

General part information

TP-VR Series

Enclosed DC DC Converter 1 Output 56V 4.46A 72V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP-VRHP-4856-250	TP-VR Series

Applications	ITE (Commercial)	ITE (Commercial)
Battery Cell Size	-	5 V
Charge Current - Max	-	1 A
Current - Output (Max) [Max]	4.46 A	1.25 - 4.46 A
Efficiency	85 %	80 - 85 %
Mounting Type	Chassis Mount	DIN Rail, Chassis Mount, Custom
Number of Cells	-	1
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 ░C
Power - Max	-	5 W
Power (Watts)	250 W	15 - 250 W
Size / Dimension [x]	188 mm	69.85 - 188 mm
Size / Dimension [x]	7.4 "	2.75 - 7.4 "
Size / Dimension [y]	149.9 mm	31.75 - 149.9 mm
Size / Dimension [y]	5.9 "	1.25 - 5.9 "
Size / Dimension [z]	43.2 mm	25.4 - 43.2 mm
Size / Dimension [z]	1.7 in	1 - 1.7 "
Termination Style	-	USB A Receptacle
Type	Enclosed	Enclosed, USB In-Vehicle
Voltage - Input	-	32 V
Voltage - Input	-	10 V
Voltage - Input (Max) [Max]	72 V	15 - 72 V
Voltage - Input (Min) [Min]	36 V	10 - 36 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Nominal	-	5 V
Voltage - Output 1	56 V	5 - 56 V

TP-VR Series

36-72VDC INPUT, 56V 1.25A 70W RE

Part	Number of Outputs	Current - Output (Max) [Max]	Mounting Type	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Efficiency	Power - Max [Max]	Charge Current - Max [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Battery Cell Size	Voltage - Nominal	Number of Cells
Tycon Systems Inc. TP-VRHP-4856	1	1.25 A	Chassis Mount, DIN Rail	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	72 V	36 V	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	56 V	85 %
Tycon Systems Inc. TP-VR-2405	1	3 A	Chassis Mount	15 W	ITE (Commercial)	65 °C	-40 °C	Enclosed	32 V	10 VDC								5 V	80 %
Tycon Systems Inc. TP-VR-2412	1	1.25 A	Chassis Mount	15 W	ITE (Commercial)	65 °C	-40 °C	Enclosed	32 V	18 V								12 V	80 %
Tycon Systems Inc. TP-VRHP-2424	1	2.9 A	Chassis Mount, DIN Rail	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	36 V	18 V	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	24 V	85 %
Tycon Systems Inc. TP-VRHP-1256	1	1.25 A	Chassis Mount, DIN Rail	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	15 V	10 VDC	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	56 V	85 %
Tycon Systems Inc. TP-VRHP-4824	1	2.9 A	Chassis Mount	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	72 V	36 V	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	24 V	85 %
Tycon Systems Inc. TP-VRHP-2456-250	1	4.46 A	Chassis Mount, DIN Rail	250 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	36 V	18 V	1.5 kV	38.1 mm, 43.2 mm	133.1 mm, 188 mm	5.24 ", 7.4 "	1.5 ", 1.7 in	3 ", 5.9 "	76.2 mm, 149.9 mm	56 V	83 %, 85 %
Tycon Systems Inc. TP-VR-2405-USB			Custom			65 °C	-40 °C	USB In-Vehicle				25.4 mm	69.85 mm	2.75 in	1 "	1.25 in	31.75 mm			5 W	1 A	32 V	10 V	USB A Receptacle	5 V	5 V	1
Tycon Systems Inc. TP-VRHP-1224	1	2.9 A	Chassis Mount	70 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	15 V	10 VDC	1.5 kV	38.1 mm	133.1 mm	5.24 "	1.5 "	3 "	76.2 mm	24 V	85 %
Tycon Systems Inc. TP-VRHP-4856-250	1	4.46 A	Chassis Mount	250 W	ITE (Commercial)	65 °C	-30 ░C	Enclosed	72 V	36 V	1.5 kV	43.2 mm	188 mm	7.4 "	1.7 in	5.9 "	149.9 mm	56 V	85 %
