EN2C2M20G1W

Active

Switchcraft Inc.

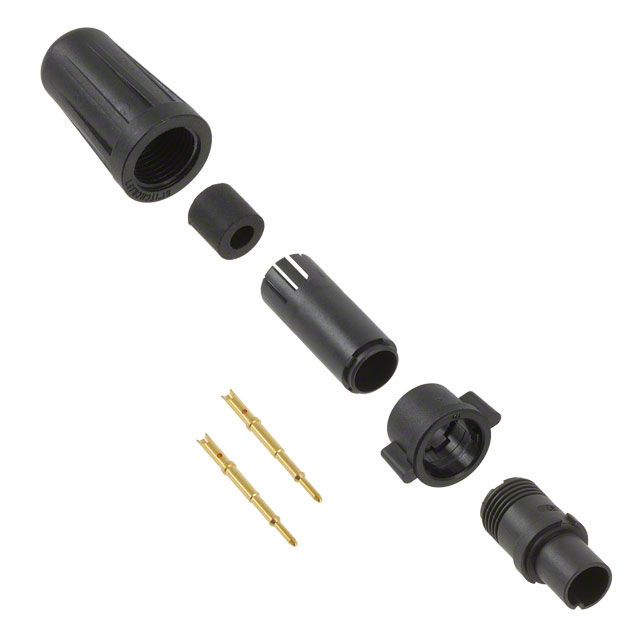

CONN PLUG MALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C2M20G1W

Active

Switchcraft Inc.

CONN PLUG MALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.99
		10	$ 5.41
		25	$ 5.11
		50	$ 4.99
		100	$ 4.74
		300	$ 4.24
		500	$ 3.99
		1000	$ 3.85

Description

General part information

EN2C2M Series

2 Position Circular Connector Plug, Male Pins Crimp or Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C2M20G1W	EN2C2M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Cable Opening [custom]	3.56 mm, 2.54 mm	2.54 - 3.56 mm
Cable Opening [custom]	0.14 in, 0.1 in	0.1 - 0.14 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3.5 A	3.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell, Winged	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	250 VAC	250 VAC

EN2C2M Series

CONN PLUG MALE 2POS GOLD CRIMP

Part	Contact Finish - Mating	Mounting Type	Features	Insert Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Termination	Backshell Material, Plating	Ingress Protection	Current Rating (Amps)	Material Flammability Rating	Orientation	Fastening Type	Shielding	Number of Positions	Contact Material	Applications	Voltage Rating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. EN2C2M20G3	Gold	Free Hanging (In-Line)	Backshell, Coupling Nut	Elastomer	Male Pins, Plug	85 °C	-40 °C	Plastic	Crimp, Solder Cup	Thermoplastic	IP66, IP67, IP68	3.5 A	UL94 V-0	Keyed	Bayonet Lock	Unshielded	2	Copper Alloy	Communication Systems, Industrial, Marine, Medical	250 VAC	0.18 in	0.22 in	4.57 mm	5.59 mm	Black
Switchcraft Inc. EN2C2M20G1W	Gold	Free Hanging (In-Line)	Backshell, Coupling Nut, Winged	Elastomer	Male Pins, Plug	85 °C	-40 °C	Plastic	Crimp, Solder Cup	Thermoplastic	IP66, IP67, IP68	3.5 A	UL94 V-0	Keyed	Bayonet Lock	Unshielded	2	Copper Alloy	Communication Systems, Industrial, Marine, Medical	250 VAC					Black	2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C2M20G3W	Gold	Free Hanging (In-Line)	Backshell, Coupling Nut, Winged	Elastomer	Male Pins, Plug	85 °C	-40 °C	Plastic	Crimp, Solder Cup	Thermoplastic	IP66, IP67, IP68	3.5 A	UL94 V-0	Keyed	Bayonet Lock	Unshielded	2	Copper Alloy	Communication Systems, Industrial, Marine, Medical	250 VAC	0.18 in	0.22 in	4.57 mm	5.59 mm	Black
Switchcraft Inc. EN2C2M20G1	Gold	Free Hanging (In-Line)	Backshell, Coupling Nut	Elastomer	Male Pins, Plug	85 °C	-40 °C	Plastic	Crimp, Solder Cup	Thermoplastic	IP66, IP67, IP68	3.5 A	UL94 V-0	Keyed	Bayonet Lock	Unshielded	2	Copper Alloy	Communication Systems, Industrial, Marine, Medical	250 VAC					Black	2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C2M20DCW	Gold	Free Hanging (In-Line)	Backshell, Coupling Nut, Winged	Elastomer	Male Pins, Plug	85 °C	-40 °C	Plastic	Crimp, Solder Cup	Thermoplastic	IP66, IP67, IP68	3.5 A	UL94 V-0	Keyed	Bayonet Lock	Unshielded	2	Copper Alloy	Communication Systems, Industrial, Marine, Medical	250 VAC					Black
