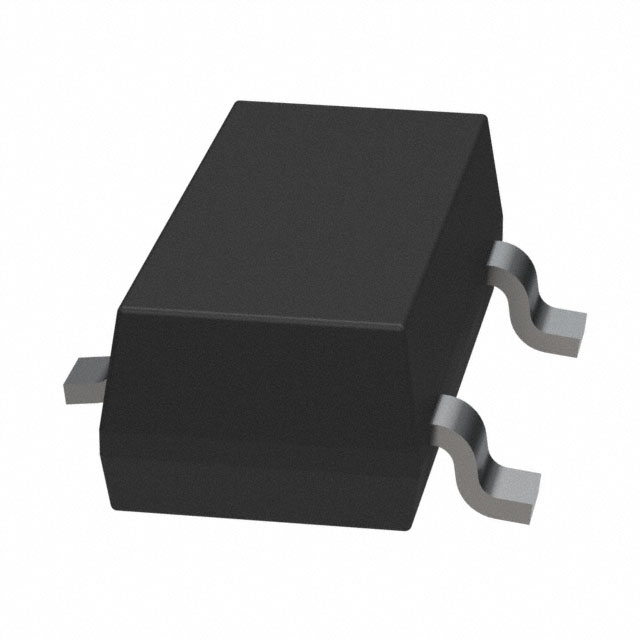

SMV1413-004LF

Active

Skyworks Solutions Inc.

COMMON CATHODE PAIR (TWIN CHIP)

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

COMMON CATHODE PAIR (TWIN CHIP)

Technical Specifications

Parameters and characteristics for this part

Specification	SMV1413-004LF

Capacitance Ratio	4.2
Capacitance Ratio Condition	C0/C30
Diode Type	Single
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Q @ Vr, F	2400
Supplier Device Package	SOT-23-3

Part	Capacitance Ratio	Capacitance @ Vr, F	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Vr, F	Capacitance Ratio Condition	Supplier Device Package	Package / Case	Diode Type
Skyworks Solutions Inc. SMV1413-079LF	4.2	4.42 pF	Surface Mount	125 ¯C	-55 °C	2400	C0/C30	SC-79	SC-79 SOD-523	Single
Skyworks Solutions Inc. SMV1413-004LF	4.2		Surface Mount	125 ¯C	-55 °C	2400	C0/C30	SOT-23-3	SC-59 SOT-23-3 TO-236-3	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Varactors Single 30 V Surface Mount SOT-23-3
