T1729322132-000
ActiveTE Connectivity AMP Connectors
H32A-TSBF-M32
Deep-Dive with AI
Search across all available documentation for this part.
T1729322132-000
ActiveTE Connectivity AMP Connectors
H32A-TSBF-M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T1729322132-000 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H32A |
| Style | Side Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.08 | |
| 12 | $ 5.30 | |||
| 30 | $ 5.16 | |||
| 54 | $ 5.02 | |||
| 102 | $ 4.91 | |||
T172 Series
H32A-TSBF-M32
| Part | Style | Size | Thread Size | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Lock Location | Housing Material | Ingress Protection | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1729322132-000 | Side Entry | H32A | M32 | Gray | 125 °C | -40 °C | Powder Coated | Locking Clip (2) on Hood | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Hood |
Description
General part information
T172 Series

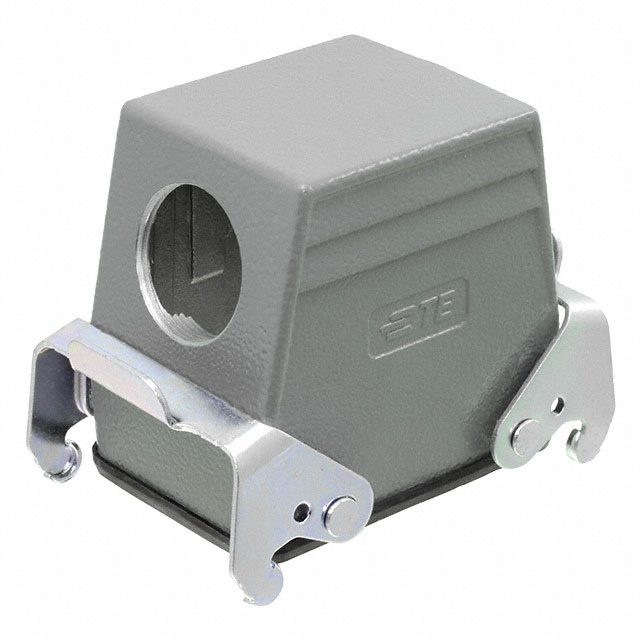

Hood Connector Side Entry M32 H32A IP65 - Dust Tight, Water Resistant
