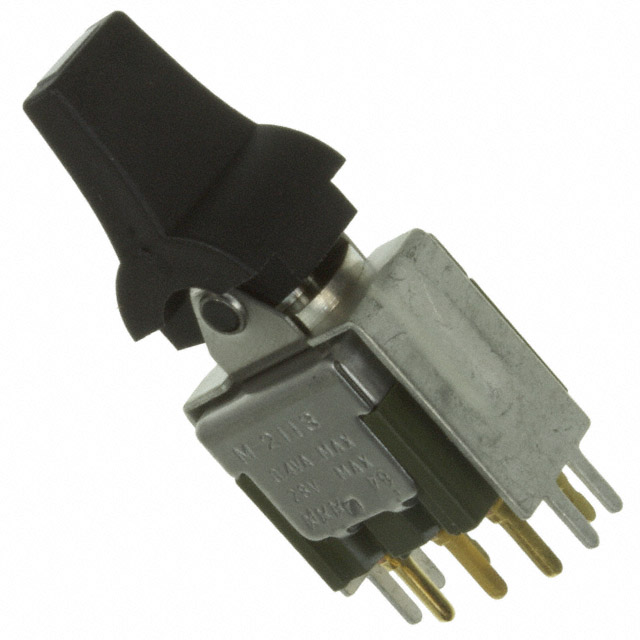

M2113PCFG13

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2113PCFG13

Actuator Marking	No Marking
Actuator Type	Paddle - Illuminated
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	25000 Steps
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC, 2.2 VDC
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Electrical Life	Actuator Type	Illumination Voltage (Nominal)	Mounting Type	Approval Agency	Voltage Rating - DC	Voltage Rating - AC	Color - Actuator/Cap	Circuit	Illumination Type, Color	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Marking
NKK Switches M2113PCFG13	0.4 VA	25000 Steps	Paddle - Illuminated	2 VDC 2.2 VDC	Through Hole	CSA UL	28 V	28 V	Black	SPDT	Green/Red LED	On-Off-On	70 °C	-25 °C	PC Pin	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole
