IXYH120N65A5

Active

IXYS

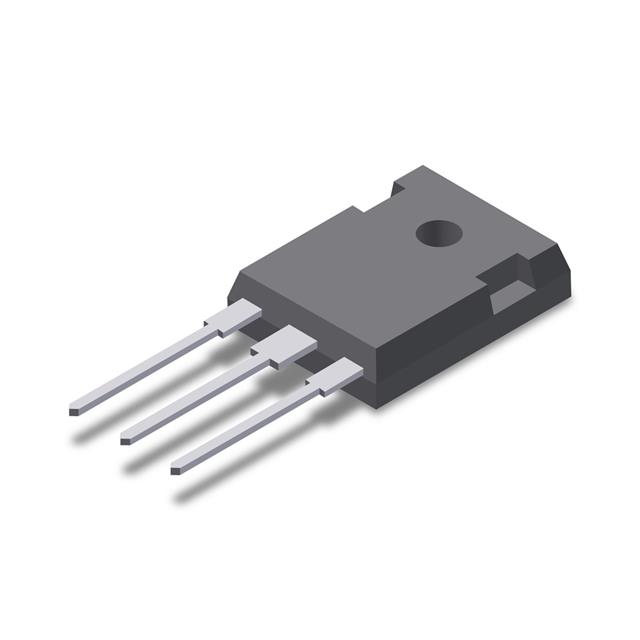

IGBT 650V 120A X5 XPT TO-247

Search across all available documentation for this part.

Active

IXYS

IGBT 650V 120A X5 XPT TO-247

Technical Specifications

Parameters and characteristics for this part

Specification	IXYH120N65A5

Current - Collector (Ic) (Max)	290 A
Current - Collector Pulsed (Icm)	790 A
Gate Charge	314 nC
IGBT Type	PT
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power - Max [Max]	830 W
Supplier Device Package	TO-247 (IXTH)
Switching Energy	3.2 mJ, 1.25 mJ
Td (on/off) @ 25°C	370 ns, 45 ns
Test Condition	15 V, 400 V, 3 Ohm, 60 A
Vce(on) (Max) @ Vge, Ic	1.35 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Test Condition	Switching Energy	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Package / Case	Mounting Type	Current - Collector Pulsed (Icm)	Td (on/off) @ 25°C	Gate Charge	Current - Collector (Ic) (Max) [Max]	Reverse Recovery Time (trr)	Voltage - Collector Emitter Breakdown (Max)	IGBT Type	Current - Collector (Ic) (Max)
IXYS IXYH12N250CV1HV	10 Ohm 12 A 15 V 1250 V	1.7 mJ 3.56 mJ	4.5 V	2500 V	TO-247 (IXYH)	-55 °C	175 ░C	310 W	TO-247-3	Through Hole	80 A	12 ns 167 ns	56 nC	28 A	16 ns
IXYS IXYH12N250C	10 Ohm 12 A 15 V 1250 V	1.7 mJ 3.56 mJ	4.5 V	2500 V	TO-247AD	-55 °C	175 ░C	310 W	TO-247-3	Through Hole	80 A	12 ns 167 ns	56 nC	28 A	16 ns
IXYS IXYH120N65A5	3 Ohm 15 V 60 A 400 V	1.25 mJ 3.2 mJ	1.35 V		TO-247 (IXTH)	-55 °C	175 ░C	830 W	TO-247-3	Through Hole	790 A	45 ns 370 ns	314 nC			650 V	PT	290 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT PT 650 V 290 A 830 W Through Hole TO-247 (IXTH)
