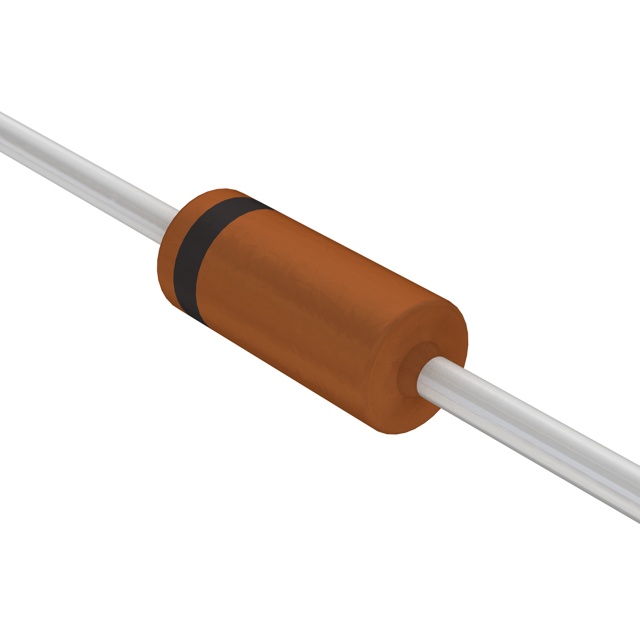

1N914B,113

Active

NXP USA Inc.

DIODE GEN PURP 100V 200MA ALF2

Search across all available documentation for this part.

Active

NXP USA Inc.

DIODE GEN PURP 100V 200MA ALF2

Technical Specifications

Parameters and characteristics for this part

Specification	1N914B,113

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	Axial, DO-35, DO-204AH
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	ALF2
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1 V

DIODE GEN PURP 100V 200MA ALF2

Part	Supplier Device Package	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Speed	Speed	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Capacitance @ Vr, F
NXP USA Inc. 1N914B,113	ALF2	4 ns	200 mA	5 µA	Through Hole	1 V	175 °C	Any Speed	200 mA	Axial, DO-204AH, DO-35	100 V	Standard	4 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 100 V 200mA Through Hole ALF2
