51K607-106N5

Active

Rosenberger

CONN BNC JACK STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC JACK STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	51K607-106N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	141
Cable Group	RG-58C
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms

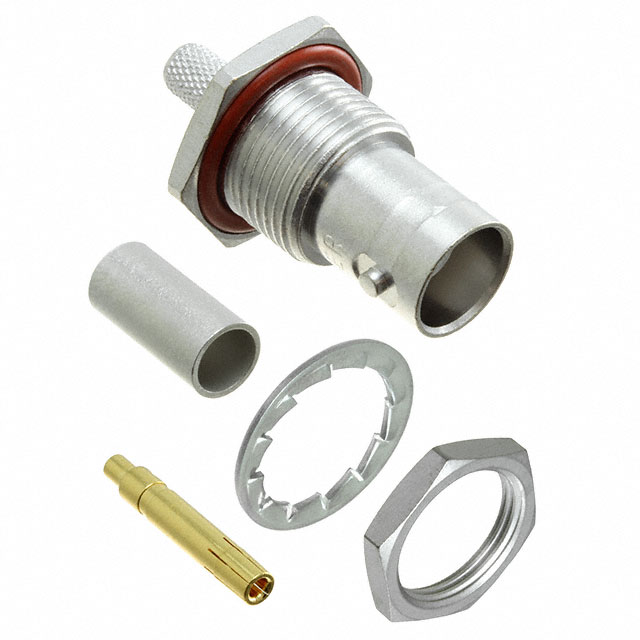

Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	400 V

Part	Frequency - Max [Max]	Includes	Body Material	Contact Termination	Housing Color	Mating Cycles	Center Contact Material	Impedance	Connector Style	Shield Termination	Fastening Type	Body Finish	Cable Group	Cable Group	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Number of Ports	Mounting Feature	Center Contact Plating	Dielectric Material
Rosenberger 51K607-108N5	10 GHz	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Brass	Crimp	Silver	500	Beryllium Copper	50 Ohms	BNC	Crimp	Bayonet Lock	White Bronze	223 400	RG-142B	Female Socket Jack	155 °C	-55 °C	400 V	1	Bulkhead - Front Side Nut	Gold	Polytetrafluoroethylene (PTFE)
Rosenberger 51K607-802N5	10 GHz	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Brass	Crimp	Silver	500	Beryllium Copper	50 Ohms	BNC	Crimp	Bayonet Lock	White Bronze		188A 316 RG-174A	Female Socket Jack	155 °C	-55 °C	400 V	1	Bulkhead - Front Side Nut	Gold	Polytetrafluoroethylene (PTFE)
Rosenberger 51K607-801N5	10 GHz	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Brass	Crimp	Silver	500	Beryllium Copper	50 Ohms	BNC	Crimp	Bayonet Lock	White Bronze		196A RG-178B	Female Socket Jack	155 °C	-55 °C	400 V	1	Bulkhead - Front Side Nut	Gold	Polytetrafluoroethylene (PTFE)
Rosenberger 51K607-106N5	10 GHz	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Brass	Crimp	Silver	500	Beryllium Copper	50 Ohms	BNC	Crimp	Bayonet Lock	White Bronze	141	RG-58C	Female Socket Jack	155 °C	-55 °C	400 V	1	Bulkhead - Front Side Nut	Gold	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 18.12

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
