ASP0450422

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ASP0450422

Active

METZ CONNECT USA Inc.

SPRING CLAMP TERMINAL BLOCK, PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.94
		10	$ 3.00
		25	$ 2.81
		50	$ 2.50
		100	$ 2.45
		250	$ 2.26
		500	$ 2.04
		1000	$ 1.81
		5000	$ 1.70

Description

General part information

ASP045 Series

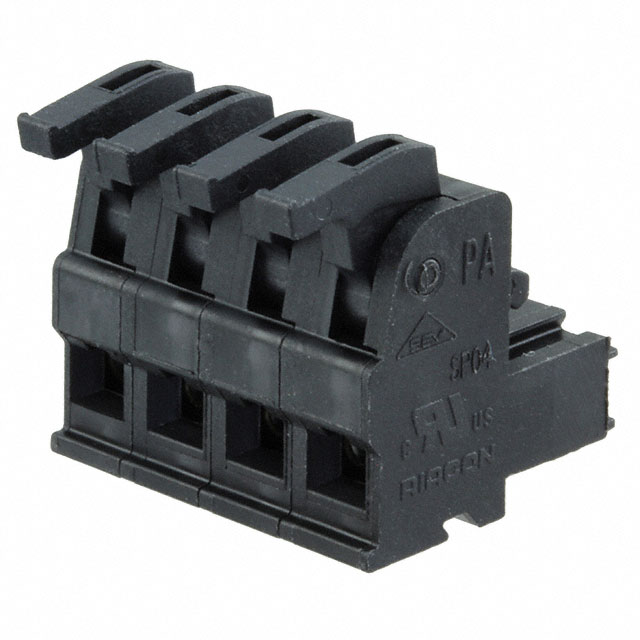

4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Specification	ASP0450422	ASP045 Series

Color	Black	Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	10 A	10 A
Features	Lever Actuated, Retention Latches (Non-Wire Side)	Lever Actuated, Retention Latches (Non-Wire Side)
Housing Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA46), Nylon 4/6
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	4	2 - 24
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	4	2 - 14
Termination Style	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	28 AWG	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG	16 AWG
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.08 mm²	0.08 mm²

Part

Voltage - UL

Pitch [x]

Material Flammability Rating

Insulation Height

Type

Color

Contact Mating Finish

Number of Levels

Wire Gauge or Range - mm² [Max]

Wire Gauge or Range - mm² [Min]

Contact Material

Features

Housing Material

Mounting Type

Wire Gauge or Range - AWG [Max]

Wire Gauge or Range - AWG [Min]

Termination Style

Operating Temperature [Min]

Operating Temperature [Max]

Current - UL

Positions Per Level

Number of Positions

METZ CONNECT USA Inc.

ASP0450522

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0451222

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0451422

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0450622

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0452422

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0451122

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0450222

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0451022

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0450922

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

METZ CONNECT USA Inc.

ASP0450322

300 V

5 mm

0.197 in

UL94 V-0

0.61 in

15.49 mm

Plug, Female Sockets

Black

Tin

1.5 mm²

0.08 mm²

Copper Alloy

Lever Actuated, Retention Latches (Non-Wire Side)

Polyamide (PA46), Nylon 4/6

Free Hanging (In-Line)

28 AWG

16 AWG

Screwless - Spring Cage, Tension Clamp

-40 °C

105 ░C

10 A

Part	Voltage - UL	Pitch [x]	Pitch [x]	Material Flammability Rating	Insulation Height	Insulation Height	Type	Color	Contact Mating Finish	Number of Levels	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Material	Features	Housing Material	Mounting Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Positions Per Level	Number of Positions
METZ CONNECT USA Inc. ASP0450522	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	5
METZ CONNECT USA Inc. ASP0451222	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	12	12
METZ CONNECT USA Inc. ASP0451422	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	14	14
METZ CONNECT USA Inc. ASP0450622	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	6	6
METZ CONNECT USA Inc. ASP0452422	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A		24
METZ CONNECT USA Inc. ASP0451122	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	11	11
METZ CONNECT USA Inc. ASP0450222	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	2	2
METZ CONNECT USA Inc. ASP0451022	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	10	10
METZ CONNECT USA Inc. ASP0450922	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	9	9
METZ CONNECT USA Inc. ASP0450322	300 V	5 mm	0.197 in	UL94 V-0	0.61 in	15.49 mm	Plug, Female Sockets	Black	Tin	1	1.5 mm²	0.08 mm²	Copper Alloy	Lever Actuated, Retention Latches (Non-Wire Side)	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	28 AWG	16 AWG	Screwless - Spring Cage, Tension Clamp	-40 °C	105 ░C	10 A	3
