ASP0450322
ActiveMETZ CONNECT USA Inc.
SPRING CLAMP TERMINAL BLOCK, PLU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASP0450322
ActiveMETZ CONNECT USA Inc.
SPRING CLAMP TERMINAL BLOCK, PLU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASP0450322 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - UL | 10 A |
| Features | Lever Actuated, Retention Latches (Non-Wire Side) |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.61 in |
| Insulation Height | 15.49 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 3 |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Type | Plug, Female Sockets |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm² [Max] | 1.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.98 | |
| 10 | $ 2.25 | |||
| 25 | $ 2.09 | |||
| 50 | $ 1.88 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.47 | |||
| 1000 | $ 1.33 | |||
| 5000 | $ 1.17 | |||
Description
General part information
ASP0450322

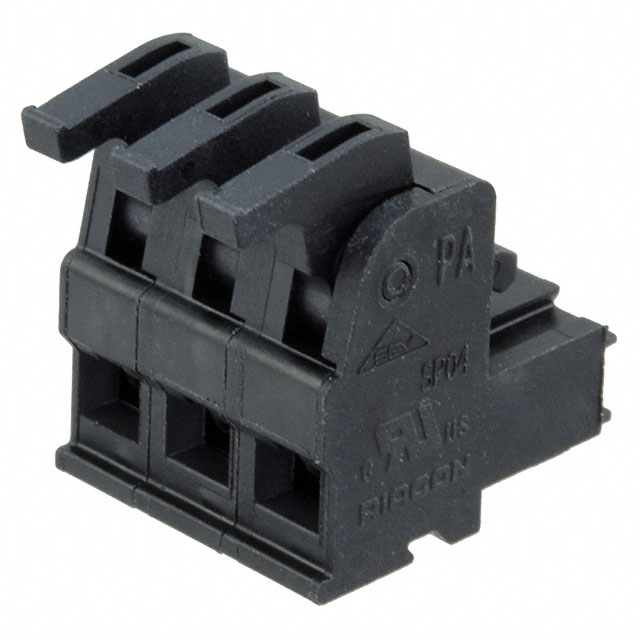

3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
