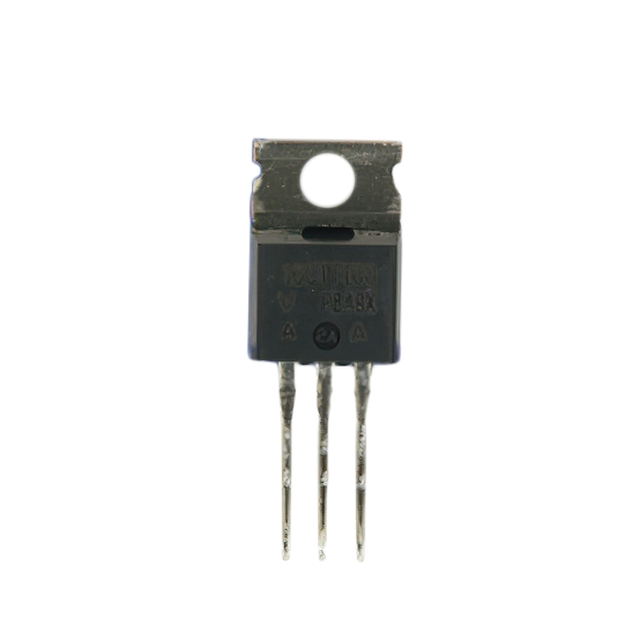

16CTT100

Active

VISHAY

DIODE ARR SCHOTT 100V 8A TO220AB

Search across all available documentation for this part.

Active

VISHAY

DIODE ARR SCHOTT 100V 8A TO220AB

Technical Specifications

Parameters and characteristics for this part

Specification	16CTT100

Current - Average Rectified (Io) (per Diode)	8 A
Current - Reverse Leakage @ Vr	65 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AB
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	720 mV

DIODE ARR SCHOTT 100V 8A TO220AB

Part	Current - Average Rectified (Io) (per Diode)	Mounting Type	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Speed	Voltage - Forward (Vf) (Max) @ If	Technology	Diode Configuration	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
VISHAY 16CTT100	8 A	Through Hole	65 µA	TO-220AB	100 V	TO-220-3	200 mA, 500 ns	720 mV	Schottky	1 Pair Common Cathode	175 ░C	-55 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.13

General part information

Diode Array 1 Pair Common Cathode 100 V 8A Through Hole TO-220-3

Technical documentation and resources

No documents available
