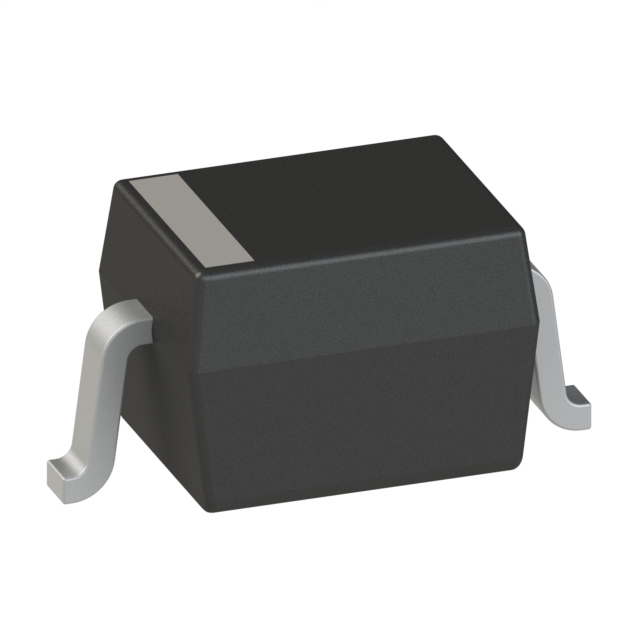

ESDA051-1JY - SOD-323

ESDA051-1JY

Active
STMicroelectronics

ESD PROTECTION DEVICE, 12.8 V, SOD-323, 2 PINS, 5 V, 190 PF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+27
ESDA051-1JY - SOD-323

ESDA051-1JY

Active
STMicroelectronics

ESD PROTECTION DEVICE, 12.8 V, SOD-323, 2 PINS, 5 V, 190 PF

Deep-Dive with AI

DocumentsDatasheetDatasheet+27

Technical Specifications

Parameters and characteristics for this part

SpecificationESDA051-1JY
Current - Peak Pulse (10/1000µs)20 A
GradeAutomotive
Mounting TypeSurface Mount
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
Package / CaseSOD-323, SC-76
Power Line ProtectionFalse
QualificationAEC-Q101
Supplier Device PackageSOD-323
TypeZener
Unidirectional Channels [custom]1
Voltage - Clamping (Max) @ Ipp [Max]12.8 V
Voltage - Reverse Standoff (Typ)5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.31
10$ 0.19
100$ 0.12
500$ 0.09
1000$ 0.08
Digi-Reel® 1$ 0.31
10$ 0.19
100$ 0.12
500$ 0.09
1000$ 0.08
Tape & Reel (TR) 3000$ 0.06
6000$ 0.06
9000$ 0.05
15000$ 0.05
21000$ 0.05
30000$ 0.05
75000$ 0.04
150000$ 0.04
NewarkEach (Supplied on Cut Tape) 1$ 0.30
10$ 0.19
25$ 0.16
50$ 0.13
100$ 0.10
250$ 0.10
500$ 0.09
1000$ 0.09

Description

General part information

ESDA051-1JY Series

This ESDA051-1JY is unidirectional single TVS protection devices designed to protect sensitive equipement against ESD transients and EOS surges.

This device is packaged in SOD323.
