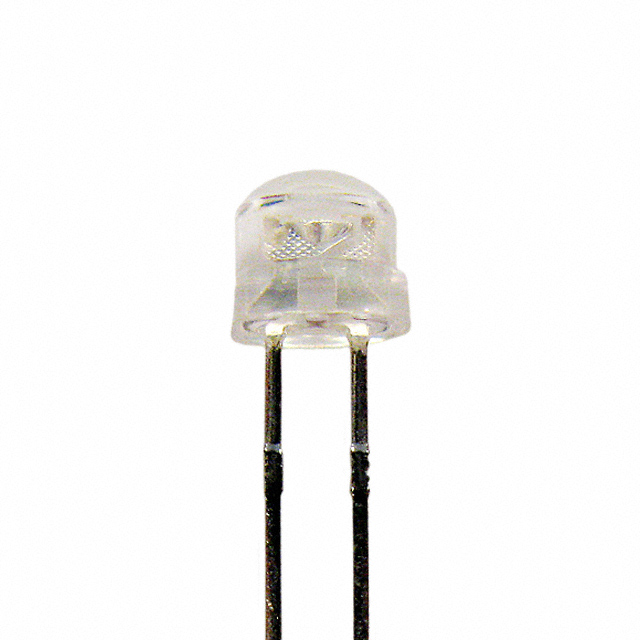

XLM2ACY169W

Active

SunLED

LED YELLOW CLEAR 5MM ROUND T/H

Search across all available documentation for this part.

Active

SunLED

LED YELLOW CLEAR 5MM ROUND T/H

Technical Specifications

Parameters and characteristics for this part

Specification	XLM2ACY169W

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	4.85 mm
Lens Color	Colorless
Lens Size [diameter]	4.8 mm Dia
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	695 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package [diameter]	5 mm
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Dominant	590 nm
Wavelength - Peak	590 nm

Part	Height (Max) [Max] [z]	Lens Style	Supplier Device Package [diameter]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Mounting Type	Configuration	Lens Color	Color	Wavelength - Peak	Wavelength - Dominant	Lens Size [diameter]	Package / Case	Current - Test	Viewing Angle	Lens Transparency
SunLED XLM2ACY169W	4.85 mm	Round with Domed Top	5 mm	695 mcd	2 V	Through Hole	Standard	Colorless	Yellow	590 nm	590 nm	4.8 mm Dia	Radial	20 mA	130 °	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 590nm LED Indication - Discrete 2V Radial
