Q-2902L00132.5M

Active

Amphenol Custom Cable

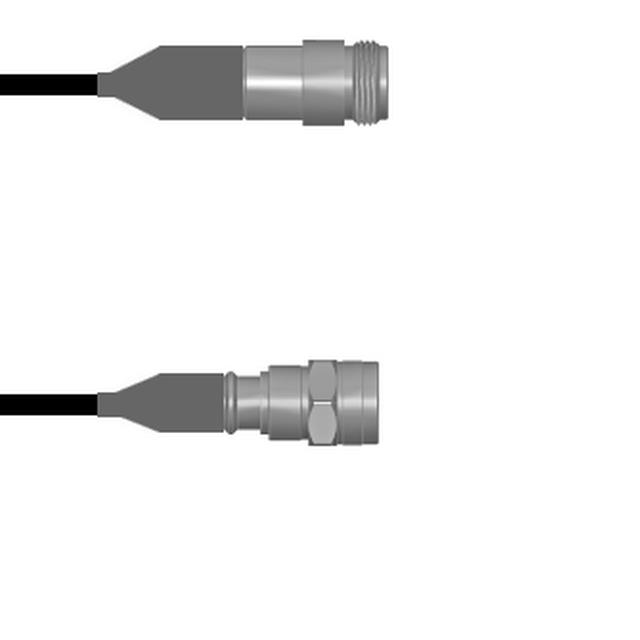

CBL ASSY NTYPE JACK TO PLUG 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2902L00132.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO PLUG 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2902L00132.5M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-2902L0 Series

Part	1st Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	2nd Contact Gender	2nd Connector	Length	Length	Length	Cable Type	Color	Features	1st Connector	Style	Length [x]	Length [x]
Amphenol Custom Cable Q-2902L00131.5M	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	59.1 in	4.9 ft	1.5 m	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type
Amphenol Custom Cable Q-2902L0013060i	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	5 '	5 ft	1.5 m	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type
Amphenol Custom Cable Q-2902L0013018i	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug				LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2902L0013003i	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	3 in		76.2 mm	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type
Amphenol Custom Cable Q-2902L00130.5M	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	19.69 "		50 cm	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type
Amphenol Custom Cable Q-2902L0013002M	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	78.7 in	6.6 ft	2 m	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type
Amphenol Custom Cable Q-2902L0013072i	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	72 in	6 ft	1.8 m	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type
Amphenol Custom Cable Q-2902L0013003M	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	118.1 in	9.8 '	3 m	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type
Amphenol Custom Cable Q-2902L00132.5M	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	98.4 in	8.2 '	2.5 m	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type
Amphenol Custom Cable Q-2902L0013108i	Free Hanging (In-Line)	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Male	N-Type Plug	108 in	9 ft	2.7 m	LMR 400	Black	Shielded	N-Type Jack	N-Type to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 167.21
		25	$ 155.96
		50	$ 144.71
		100	$ 135.07
		250	$ 127.04

Description

General part information

Q-2902L0 Series

Cable Assembly Coaxial N-Type to N-Type LMR 400 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
